(Solved): In the circuit shown below, the switch in the circuit is moved, as shown, from open to close at t=0 ...

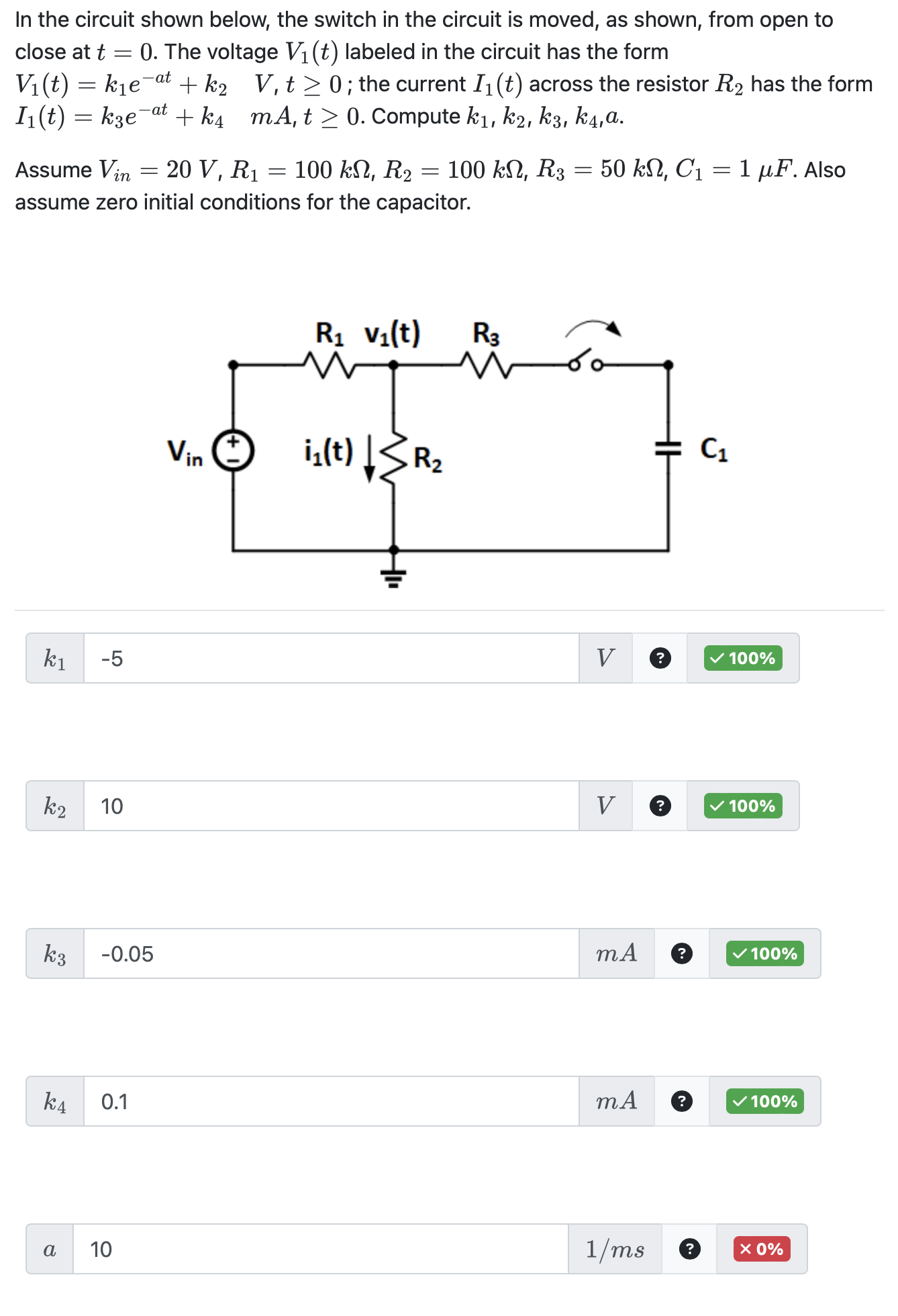

In the circuit shown below, the switch in the circuit is moved, as shown, from open to close at t=0. The voltage V1?(t) labeled in the circuit has the form V1?(t)=k1?e?at+k2?V,t?0; the current I1?(t) across the resistor R2? has the form I1?(t)=k3?e?at+k4?mA,t?0. Compute k1?,k2?,k3?,k4?,a. Assume Vin ?=20V,R1?=100k?,R2?=100k?,R3?=50k?,C1?=1?F. Also assume zero initial conditions for the capacitor.
