(Solved): l=1m,k=1000(N)/(m)eter,c=500N-(s)/() meter ,m=10kg,x_(0)=1cm, and \omega =10ra(d)/(s). Question 5 Wh ...

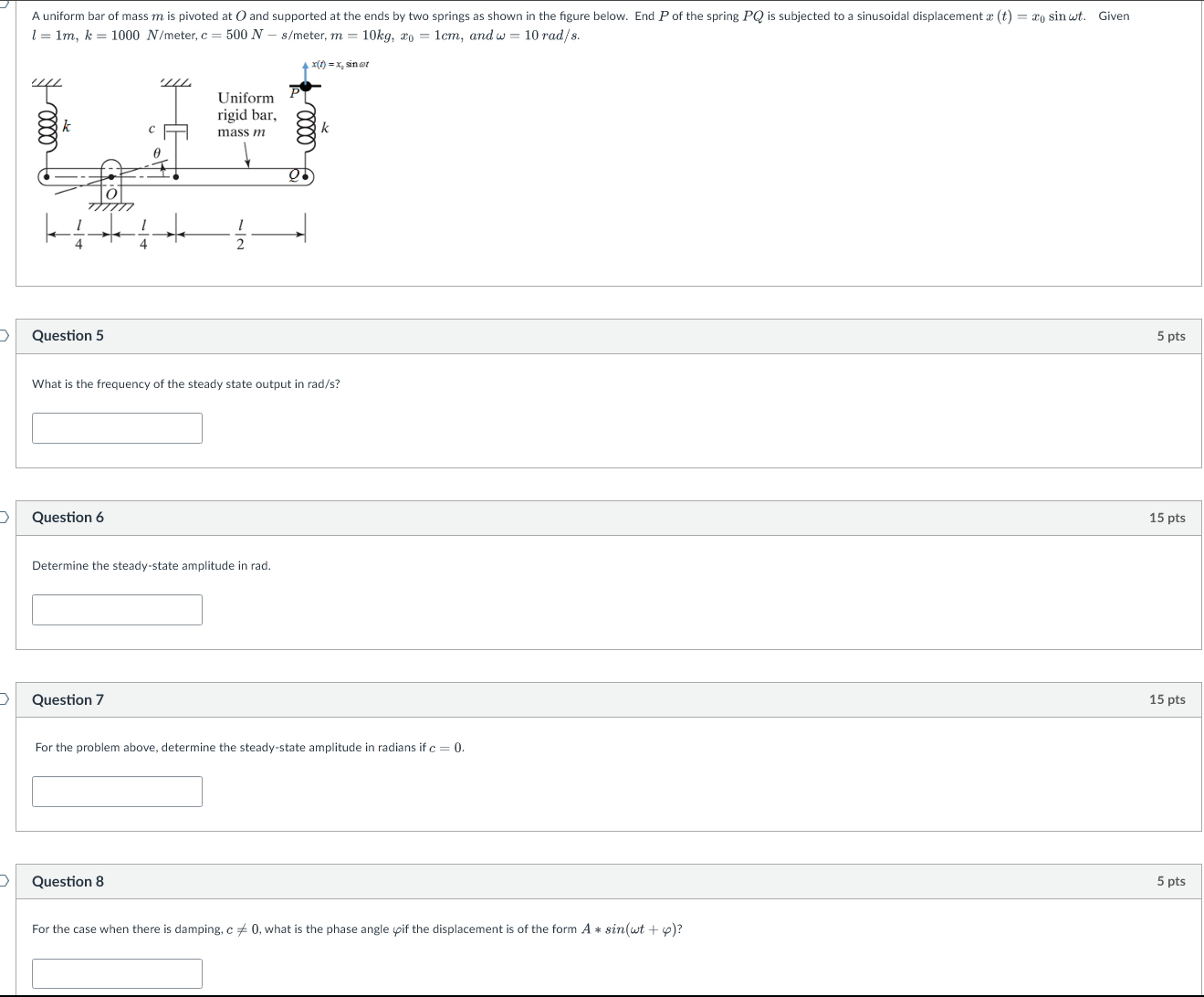

l=1m,k=1000(N)/(m)eter,c=500N-(s)/() meter ,m=10kg,x_(0)=1cm, and \omega =10ra(d)/(s).
Question 5
What is the frequency of the steady state output in ra(d)/(s) ?
Question 6
Determine the steady-state amplitude in rad.
Question 7
For the problem above, determine the steady-state amplitude in radians if c=0.
Question 8
For the case when there is damping, c!=0, what is the phase angle \phi if the displacement is of the form A*sin(\omega t+\phi ) ?
