(Solved): (m) (10 Points) ce chopper in Fig. I has inductive load of R=10\Omega and L=10mH. The input voltage ...

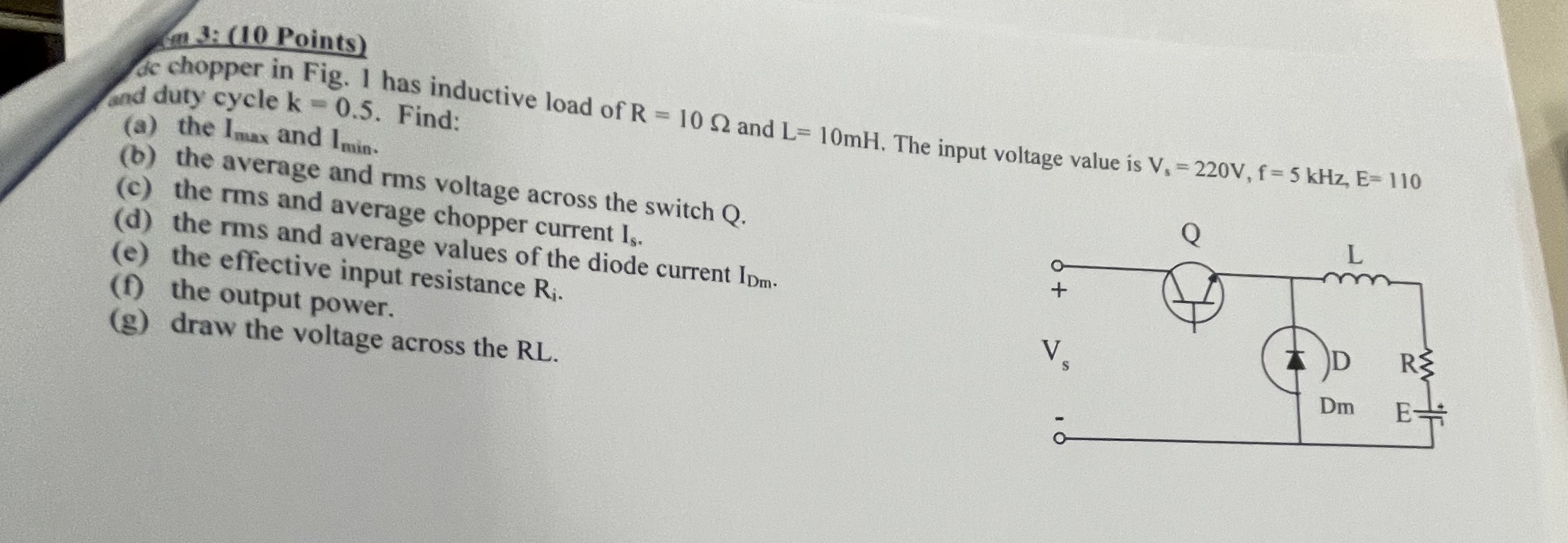

(m) (10 Points) ce chopper in Fig. I has inductive load of
R=10\Omega and
L=10mH. The input voltage value is
V_(s)=220V,f=5kHz,E=110ld duty cycle
k=0.5. Find: and duty cycle
k=0.5. (a) the
I_(max )and
I_(min ). (b) the average and rms voltage across the switch
Q. (c) the rms and average chopper current
I_(s ). (d) the rms and average values of the diode current
I_(Dm). (e) the effective input resistance
R_(i). (f) the output power. (g) draw the voltage across the RL.
