(Solved): Make sure the plot(s)/(i)mages are clearly visible. Higlight all the specific point(s)/(a)rea relate ...
Make sure the plot(s)/(i)mages are clearly
visible. Higlight all the specific point(s)/(a)rea related to the specs that is been validated.

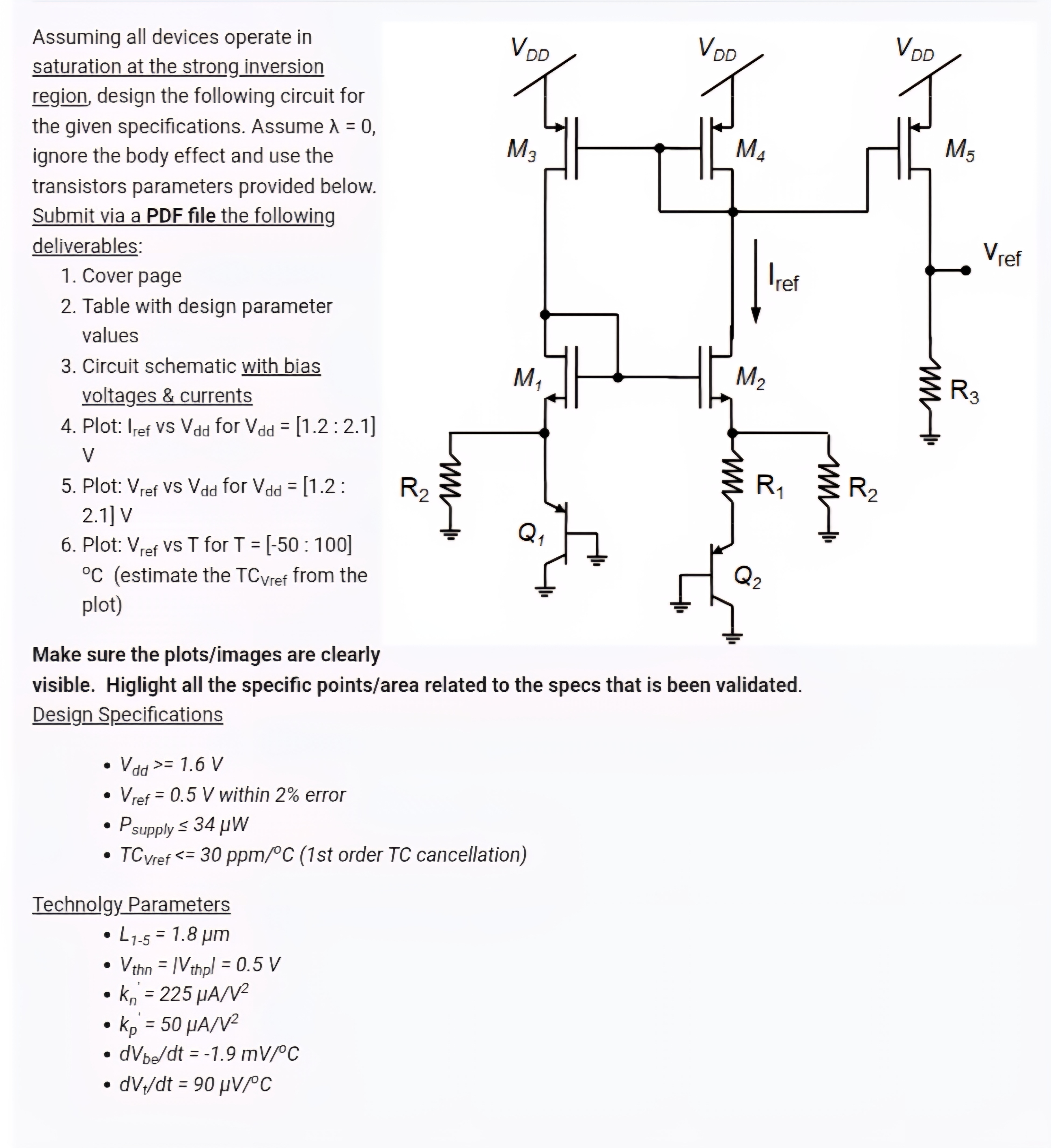

Design Specifications
V_(dd)>=1.6V
V_(ref )=0.5V within 2% error
P_(supply )<=34\mu W
TC _(()Vref )<=30pp(m)/(\deg )C (1st order TC cancellation)
Technolgy Parameters
L_(1-5)=1.8\mu m
V_(thn )=|V_(thp )|=0.5V
k_(n)=225\mu (A)/(V^(2))
k_(p)^(')=50\mu (A)/(V^(2))
d(V_(be))/(d)t=-1.9m(V)/(\deg )C
d(V_(t))/(d)t=90\mu (V)/(\deg )C
