(Solved): Model the following simple 1-DOF mechanical system and simulate the displacement and velocity of t ...

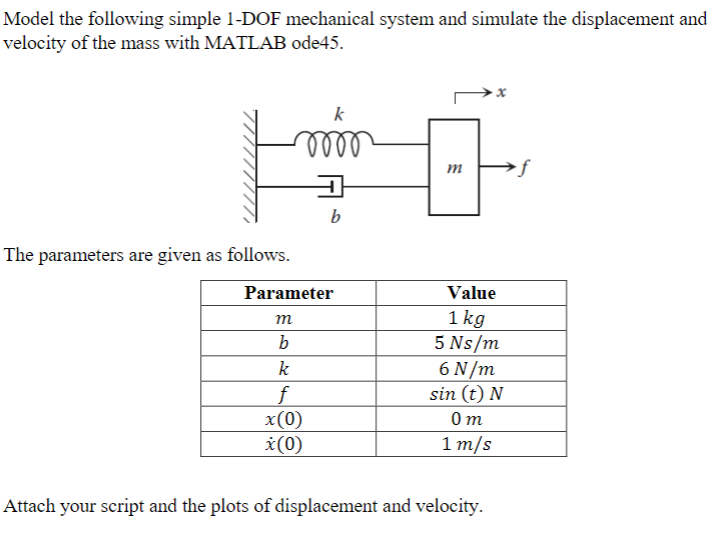

Model the following simple 1-DOF mechanical system and simulate the displacement and velocity of the mass with MATLAB ode45. The parameters are given as follows. Attach your script and the plots of displacement and velocity.
Expert Answer
At dynamic equilibrium,?Fx=maxf?kx?bx?=mx¨State space form:x?=vv?=?bmv?kmx+fm
