(Solved): my sequence is 1111 1. Design an overlapping sequence detector that detects the sequence correspondi ...

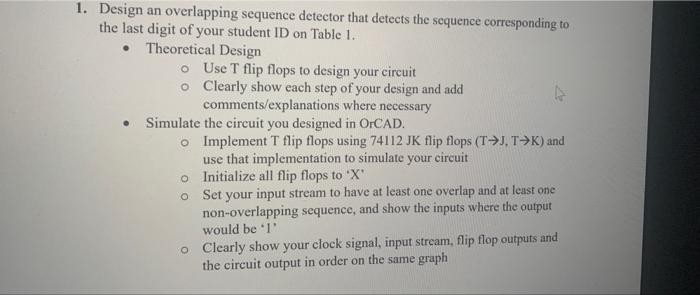

1. Design an overlapping sequence detector that detects the sequence corresponding to the last digit of your student ID on Table 1. - Theoretical Design Use T flip flops to design your circuit Clearly show each step of your design and add comments/explanations where necessary - Simulate the circuit you designed in OrCAD. Implement $\mathrm{T}$ flip flops using $74112\mathrm{JK}$ flip flops $(\mathrm{T}?\mathrm{J},\mathrm{T}?\mathrm{K})$ and use that implementation to simulate your circuit Initialize all flip flops to ' $\mathrm{X}$ ' Set your input stream to have at least one overlap and at least one non-overlapping sequence, and show the inputs where the output would be " 1 ' Clearly show your clock signal, input stream, flip flop outputs and the circuit output in order on the same graph
