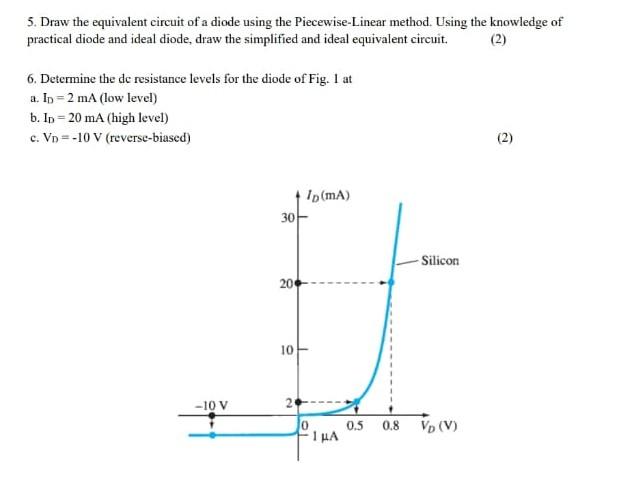

5. Draw the equivalent circuit of a diode using the Piecewise-Linear method. Using the knowledge of practical diode and ideal diode, draw the simplified and ideal equivalent circuit. (2) 6. Determine the de resistance levels for the diode of Fig. I at a. In = 2 mA (low level) b. In 20 mA (high level) = c. VD=-10 V (reverse-biased) Ip (mA) -Silicon -10 V 30 20 10 24 N 0 1 ?A 0.5 0.8 VD (V)

Question

5. Draw the equivalent circuit of a diode using the Piecewise-Linear method. Using the knowledge of
practical diode and ideal

Accepted Answer

Expert Answer to -      5. Draw the equivalent circuit of a diode using the Piecewise-Linear method. Using the kno

Answer

Solution for -      5. Draw the equivalent circuit of a diode using the Piecewise-Linear method. Using the kno

Answer

This an additional answer to -      5. Draw the equivalent circuit of a diode using the Piecewise-Linear method. Using the kno

(Solved): 5. Draw the equivalent circuit of a diode using the Piecewise-Linear method. Using the kno ...
