A transfer function is given by
H(f) = 100 / (1+j(f/1000))

a) Select the correct graph of asymptotic magnitude

b) Select the correct graph of asymptotic phase.

c) What is the value of the half-power frequency?

Select the correct graph of asymptotic magnitude Select the correct graph of asymptotic phase.

Question

A transfer function is given by
H(f) = 100 / (1+j(f/1000))

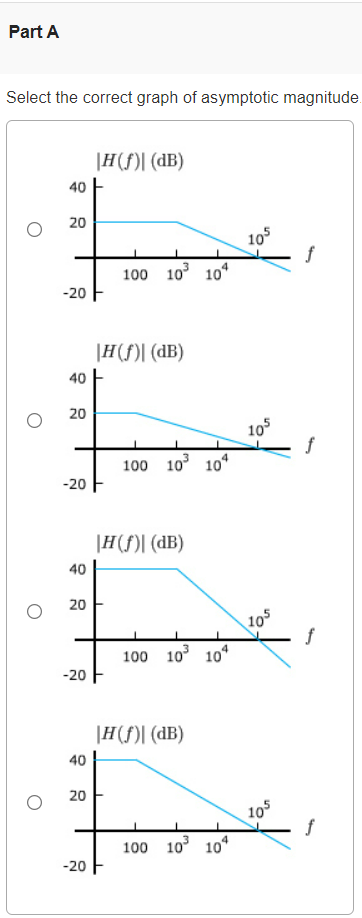

a) Select the correct graph of asymptotic magnitude

Select the correct graph of asymptotic magnitude

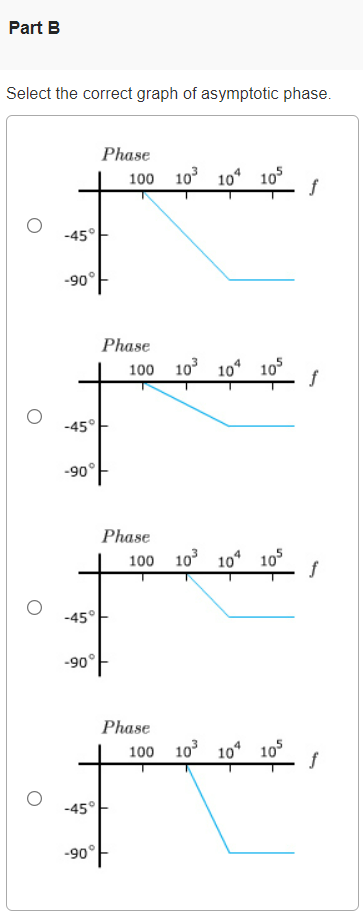

b) Select the correct graph of asymptotic phase.

Select the correct graph of asymptotic phase.

c) What is the value of the half-power frequency?

Select the correct graph of asymptotic magnitude Select the correct graph of asymptotic phase.
