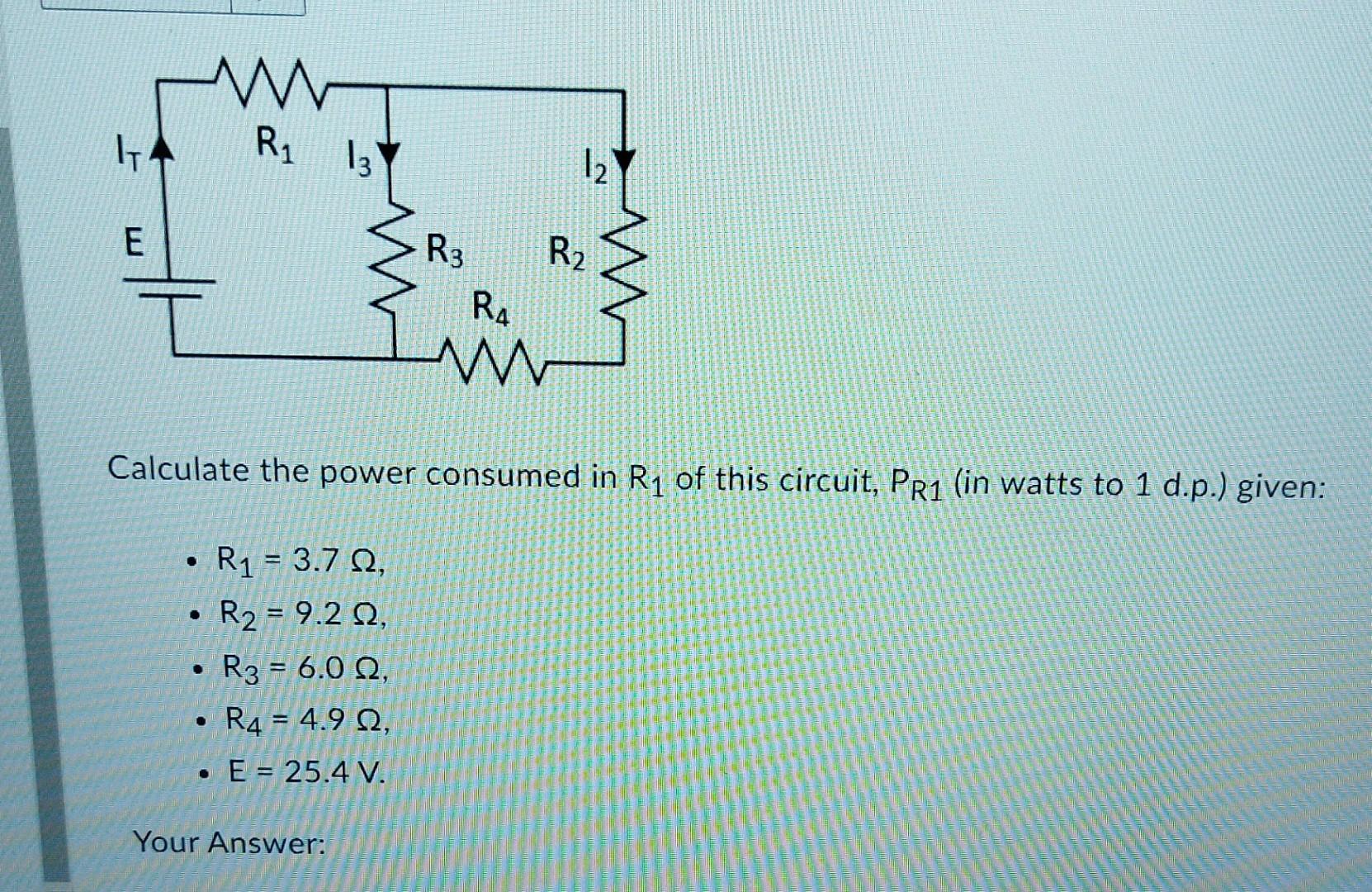

Calculate the power consumed in \( R_{1} \) of this circuit, \( P_{R 1} \) (in watts to 1 d.p.) given:
- \( R_{1}=3.7 \Omega



Calculate the power consumed in \( R_{1} \) of this circuit, \( P_{R 1} \) (in watts to 1 d.p.) given: - \( R_{1}=3.7 \Omega \), - \( R_{2}=9.2 \Omega \), - \( R_{3}=6.0 \Omega \), - \( \mathrm{R}_{4}=4.9 \Omega \), - \( E=25.4 \mathrm{~V} \). Your Answer:


We have an Answer from Expert

View Expert Answer

Expert Answer


First of all we find the total resistance of circuit for total current flowing in the circuit. for this we have to redraw the circuit diagram
