theory of machine

Q1: Draw the velocity and acceleration diagrams for the linkage shown, and find at what positions the velocity and acceleration will be zero, minimum, and maximum. Q2: Draw the velocity and acceleration diagrams for the scotch Yoke mechanism shown, and find analytically the maximum and minimum velocity and acceleration and where they occur. \[ \begin{array}{r} R= \\ \theta= \\ W=? \end{array} \]

Question

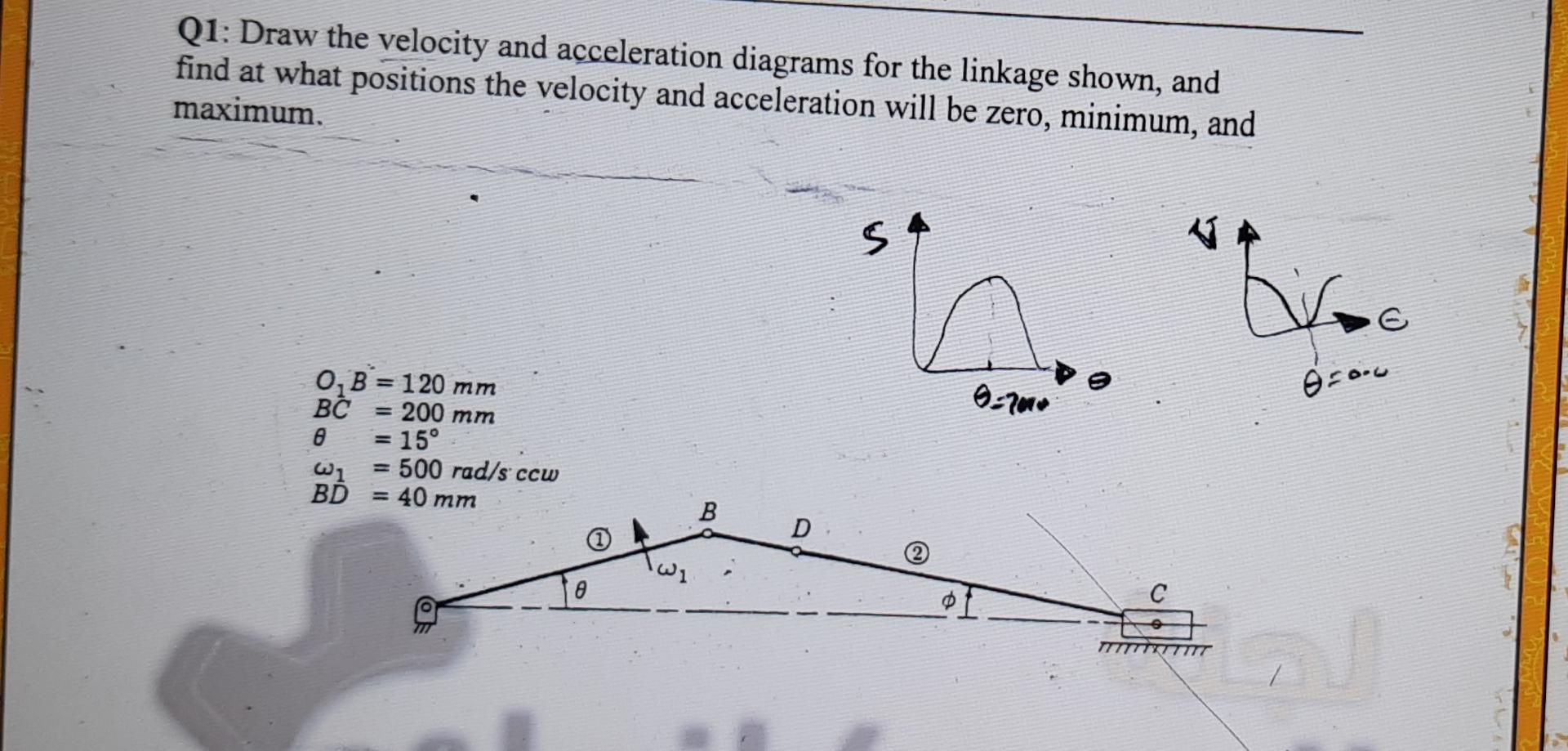

Q1: Draw the velocity and acceleration diagrams for the linkage shown, and find at what positions the velocity and accelerati

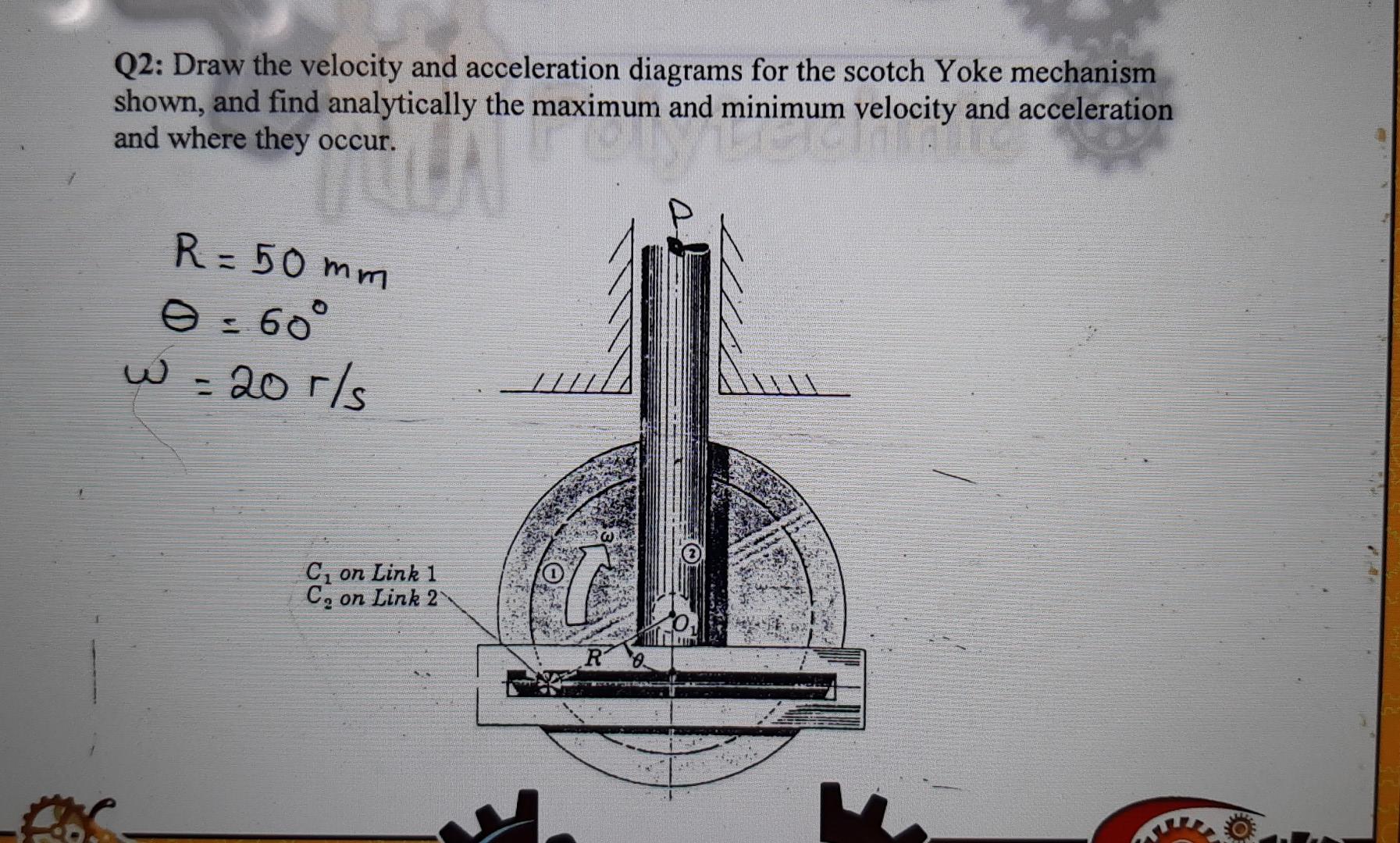

Q2: Draw the velocity and acceleration diagrams for the scotch Yoke mechanism shown, and find analytically the maximum and mi

theory of machine

Q1: Draw the velocity and acceleration diagrams for the linkage shown, and find at what positions the velocity and acceleration will be zero, minimum, and maximum. Q2: Draw the velocity and acceleration diagrams for the scotch Yoke mechanism shown, and find analytically the maximum and minimum velocity and acceleration and where they occur. \[ \begin{array}{r} R= \\ \theta= \\ W=? \end{array} \]
