(Solved):   Question 2 [24] A simply beam with an overhang is supported at points B and D as shown (Fi ...

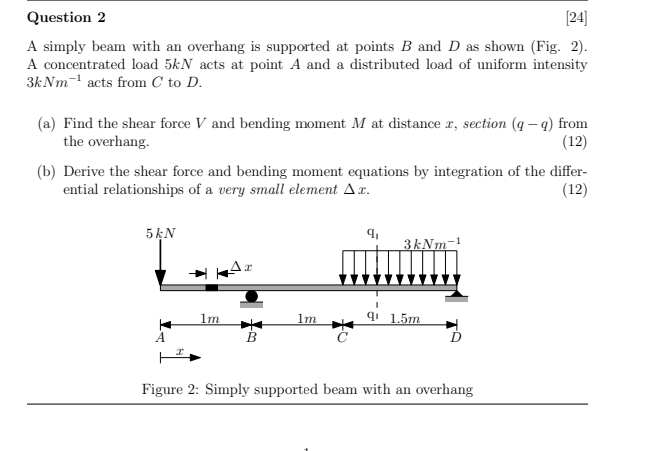

Question 2 [24] A simply beam with an overhang is supported at points B and D as shown (Fig. 2). A concentrated load 5kN acts at point A and a distributed load of uniform intensity 3kNm-¹ acts from C to D. (a) Find the shear force V and bending moment M at distance x, section (qq) from the overhang. (12) (b) Derive the shear force and bending moment equations by integration of the differ- ential relationships of a very small element Ax. (12) 5 kN 1m Ax B 1m 9? 3kNm-¹ q 1.5m Figure 2: Simply supported beam with an overhang
