structural design using bs codes

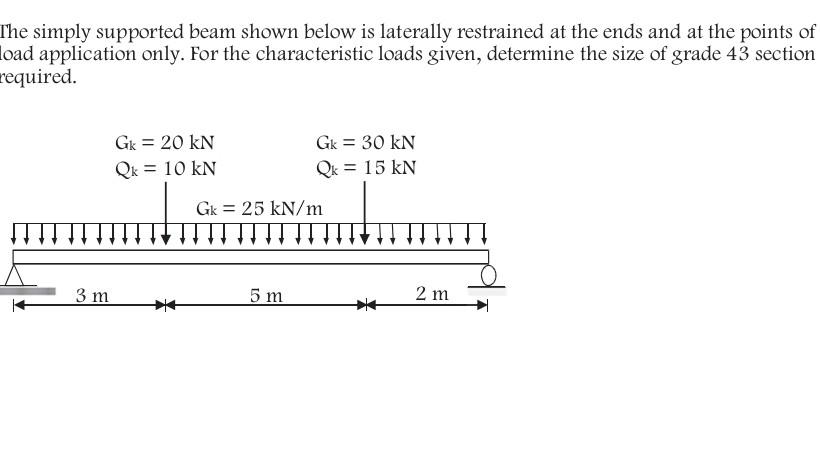

The simply supported beam shown below is laterally restrained at the ends and at the points of load application only. For the characteristic loads given, determine the size of grade 43 section required. Gk = 20 kN Qk = 10 KN ? ? ? ? ? ? ? ? ? 3 m Gk = 30 kN Qk = 15 kN Gk = 25 kN/m 5 m 2 m
