(Solved): Noe: A three-way numerical comparison is not required for this problem. Determine the state of eac ...

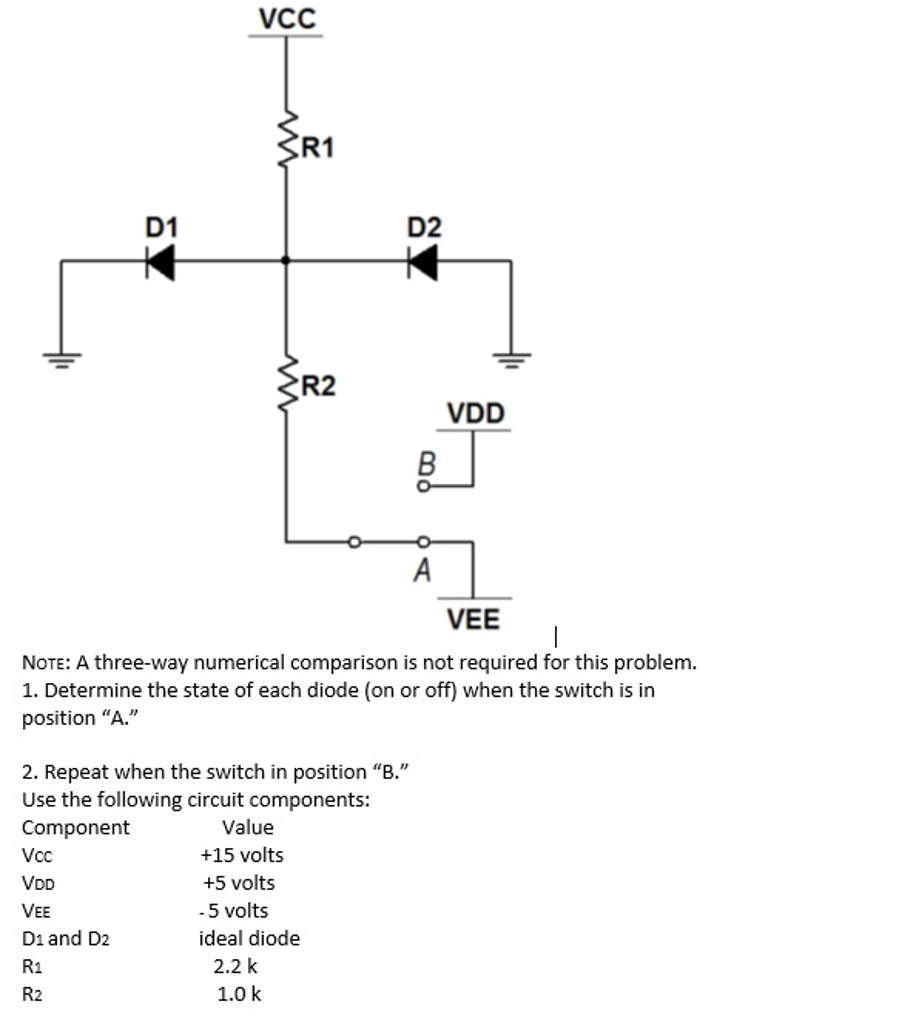

No?e: A three-way numerical comparison is not required for this problem. Determine the state of each diode (on or off) when the switch is in position "A." Repeat when the switch in position "B." Use the following circuit components: \table[[Component,Value],[VCC,+15 volts],[VDD,+5 volts],[VEE,-5 volts],[
D_(1)and
D_(2),ideal diode],[
R_(1),2.2 k],[
R_(2),1.0 k]]
