(Solved): P.11. Minimize the following function using both Boolean algebra and a K-map. f(A,B,C,D)=\sum m(0,5, ...

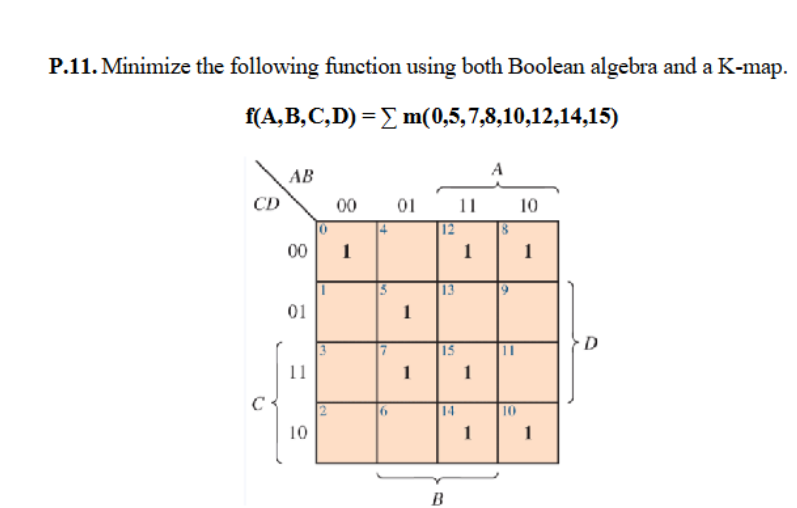

P.11. Minimize the following function using both Boolean algebra and a K-map.
f(A,B,C,D)=\sum m(0,5,7,8,10,12,14,15)

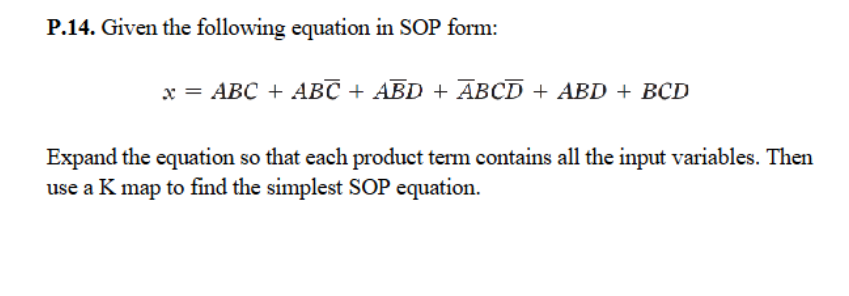

P.14. Given the following equation in SOP form:
Expand the equation so that each product term contains all the input variables. Then
use a K map to find the simplest SOP equation. P.14. Given the following equation in SOP form:
x=ABC+A(B)/(b)ar (C)+(A)/(b)ar (B)D(+)/(b)ar (A)B(C)/(b)ar (D)+ABD+BCD
Expand the equation so that each product term contains all the input variables. Then
use a K map to find the simplest SOP equation.
