(Solved): P1. An M-N flip-flop behaves as follows: If \( M N=11 \), the flip-flop is set to \( Q=0 \). If \( ...

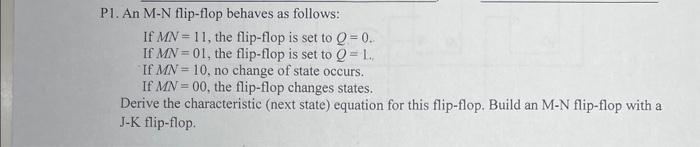

P1. An M-N flip-flop behaves as follows: If \( M N=11 \), the flip-flop is set to \( Q=0 \). If \( M N=01 \), the flip-flop is set to \( Q=1 \). If \( M N=10 \), no change of state occurs. If \( M N=00 \), the flip-flop changes states. Derive the characteristic (next state) equation for this flip-flop. Build an M-N flip-flop with a \( \mathrm{J} \)-K flip-flop.
