(Solved): Part 3. Truth Table for an AND GATE Create the MultiSim circuit shown below. Operate the A and B key ...

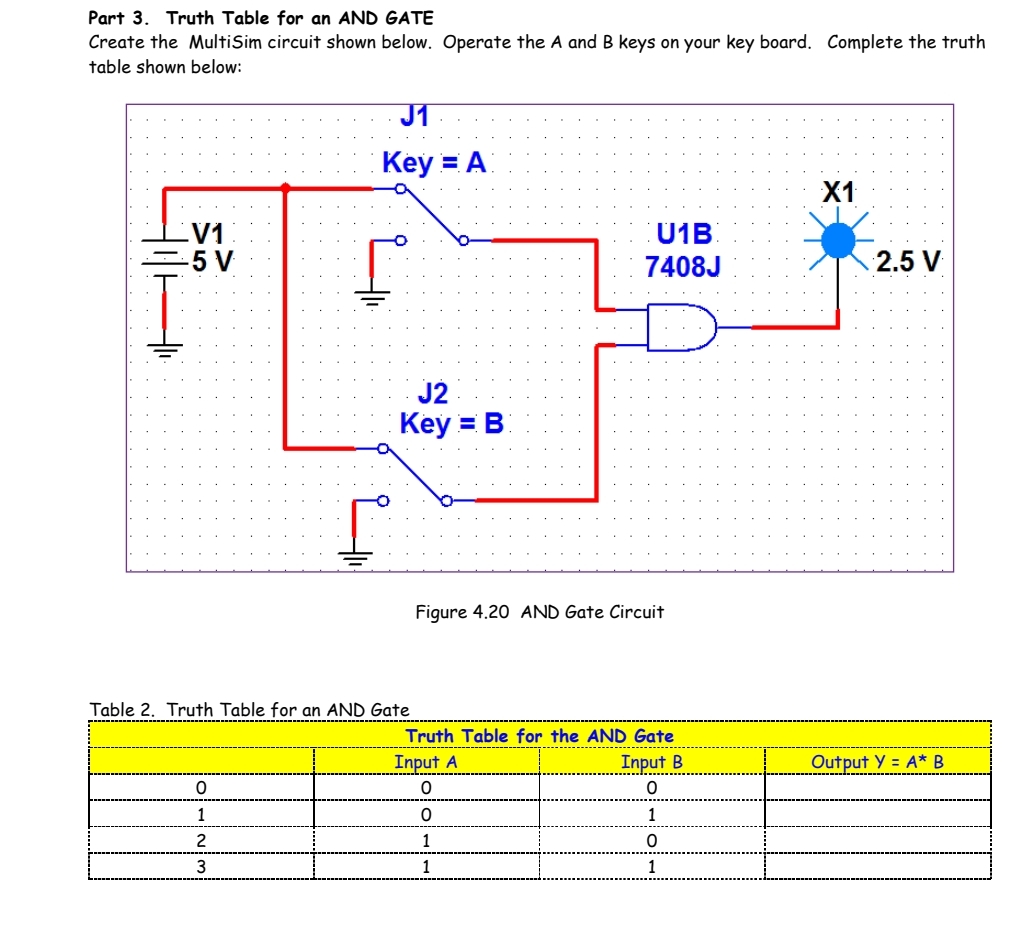

Part 3. Truth Table for an AND GATE Create the MultiSim circuit shown below. Operate the A and B keys on your key board. Complete the truth 1 Table 2. Truth Table for an AND Gate \table[[Truth Table for the AND Gate],[,Input A,Input B,Output
Y=A^(**)B
