(Solved): PART I: The half-adder using XOR and AND gates The logic of the half-adder, for adding the LSB (Lea ...

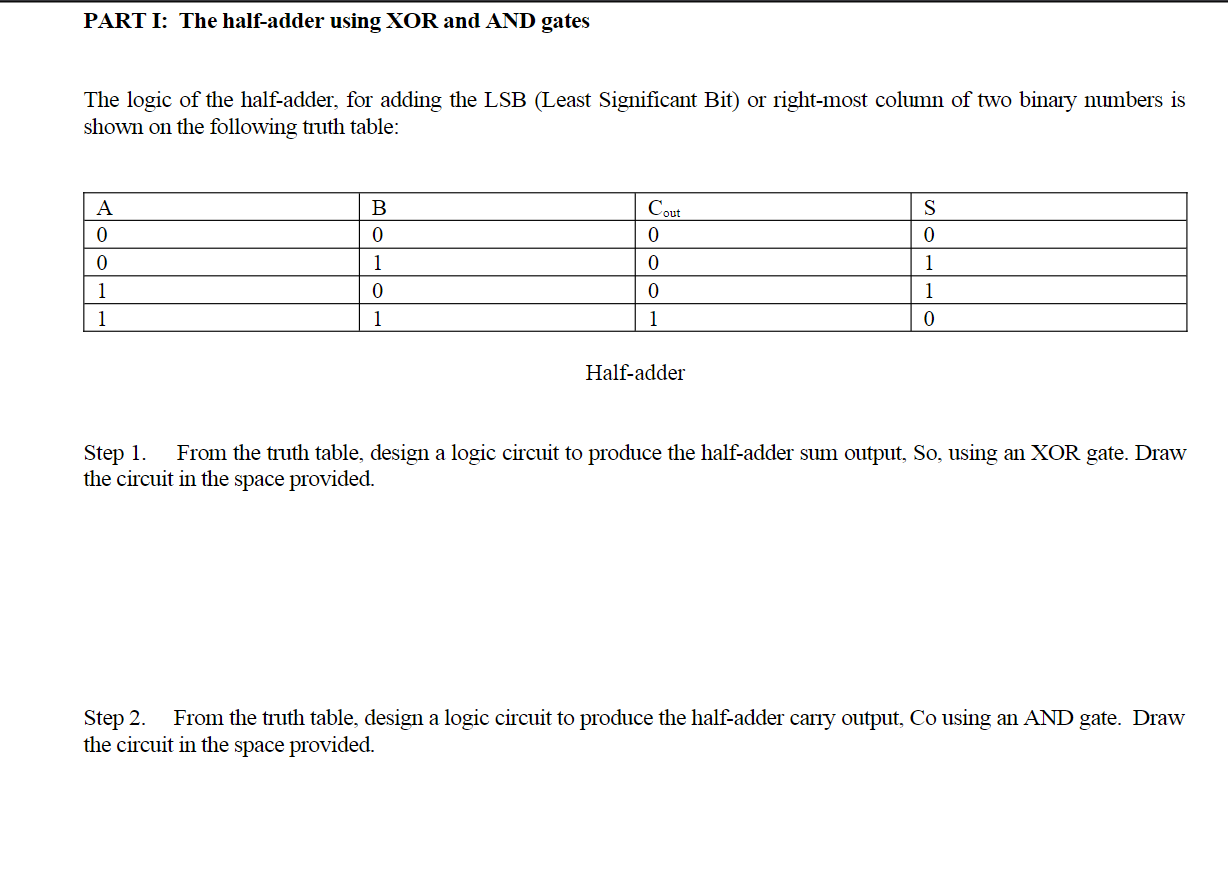

PART I: The half-adder using XOR and $AND$ gates The logic of the half-adder, for adding the LSB (Least Significant Bit) or right-most column of two binary numbers is shown on the following truth table: Half-adder Step 1. From the truth table, design a logic circuit to produce the half-adder sum output, So, using an XOR gate. Draw the circuit in the space provided. Step 2. From the truth table, design a logic circuit to produce the half-adder carry output, Co using an AND gate. Draw the circuit in the space provided.
