Please do it carefully

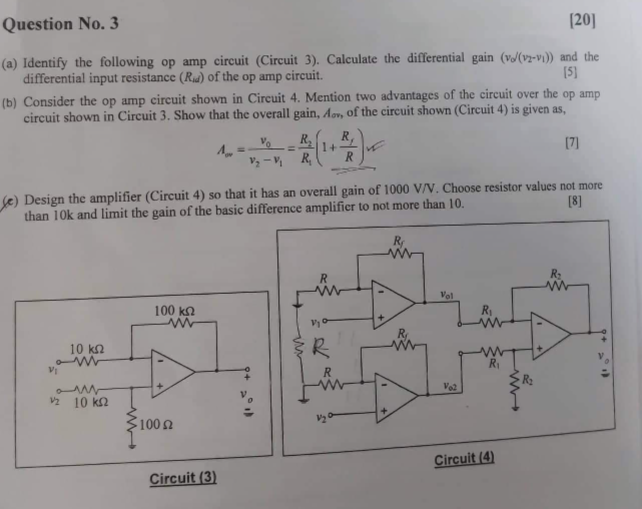

(a) Identify the following op amp circuit (Circuit 3). Calculate the differential gain \( \left(v_{\mathrm{d}}\left(v_{2}-v_{1}\right)\right) \) and the differential input resistance \( \left(R_{i d}\right) \) of the op amp circuit. b) Consider the op amp circuit shown in Circuit 4. Mention two advantages of the circuit over the op amp circuit shown in Circuit 3 . Show that the overall gain, Aow, of the circuit shown (Circuit 4 ) is given as, \[ A_{j o}=\frac{v_{0}}{v_{2}-v_{1}}=\frac{R_{2}}{R_{1}}\left(1+\frac{R_{f}}{R}\right) \rightsquigarrow \] (e) Design the amplifier (Circuit 4) so that it has an overall gain of 1000 V/V. Choose resistor values not more than \( 10 \mathrm{k} \) and limit the gain of the basic difference amplificr to not more than 10 . [8]
