Please help me draw the Diagrams and images for this question:

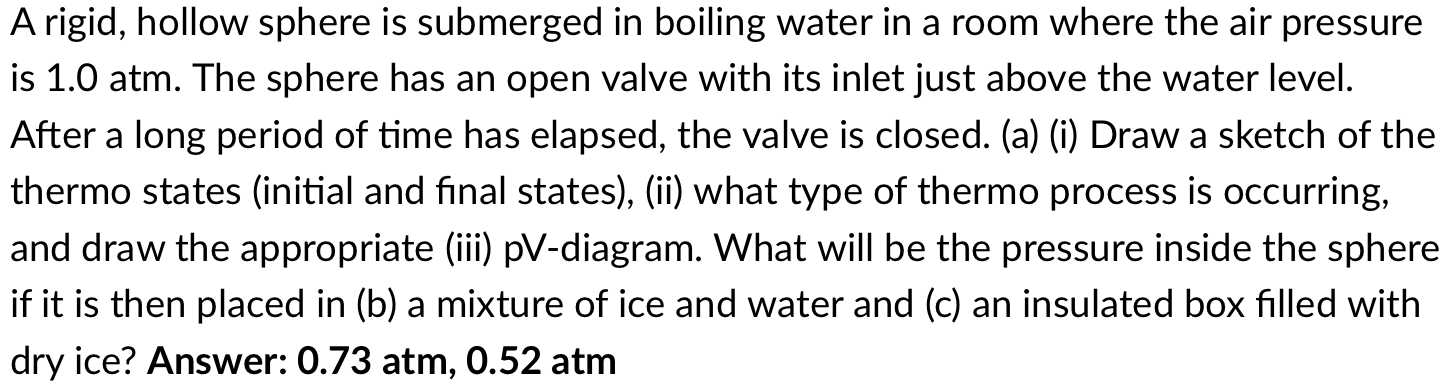

A rigid, hollow sphere is submerged in boiling water in a room where the air pressure is 1.0 atm. The sphere has an open valve with its inlet just above the water level. After a long period of time has elapsed, the valve is closed. (a) (i) Draw a sketch of the thermo states (initial and final states), (ii) what type of thermo process is occurring, and draw the appropriate (iii) pV-diagram. What will be the pressure inside the sphere if it is then placed in (b) a mixture of ice and water and (c) an insulated box filled with dry ice? Answer: 0.73 atm, 0.52 atm
Expert Answer
Solution:From the given information,Let's denote the initial process as i and the final process as fa) [i] Sketch of the thermo states, [ii]The volume of sphere doent change through out the process, The process is where volume is constant Isochori...
