(Solved): please solve the attached  Topic 3 Stress analysis on high voltage power cable support structur ...

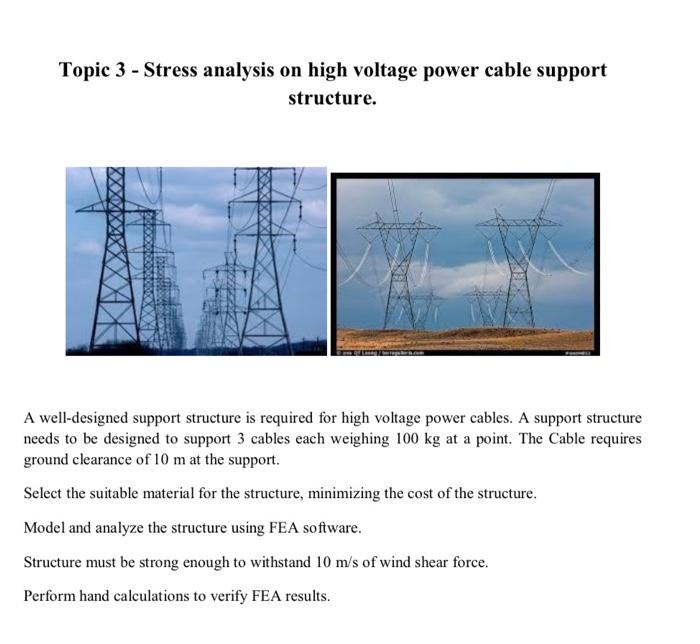

Topic 3 Stress analysis on high voltage power cable support structure. A A well-designed support structure is required for high voltage power cables. A support structure needs to be designed to support 3 cables each weighing 100 kg at a point. The Cable requires ground clearance of 10 m at the support. Select the suitable material for the structure, minimizing the cost of the structure. Model and analyze the structure using FEA software. Structure must be strong enough to withstand 10 m/s of wind shear force. Perform hand calculations to verify FEA results.
