(Solved): Please use the Process Flow Diagramdor Acetone production process. a. It is BFD, PFD, or P& ...

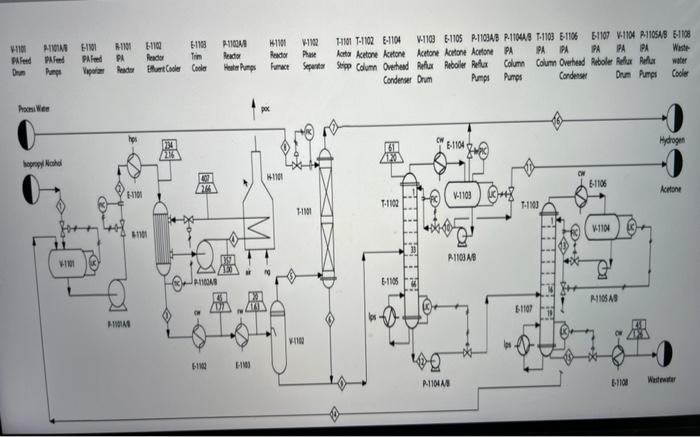

Please use the Process Flow Diagramdor Acetone production process.
a. It is BFD, PFD, or P&ID
b. Mark all the utility streams. List the meaning of all the ultitity codes that are on the diagram.

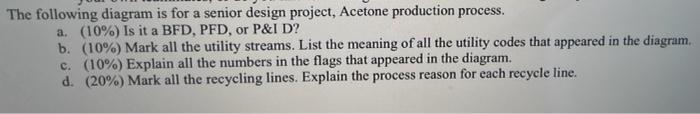

The following diagram is for a senior design project, Acetone production process. a. \( (10 \%) \) Is it a BFD, PFD, or P\&I D? b. \( (10 \%) \) Mark all the utility streams. List the meaning of all the utility codes that appeared in the diagram. c. \( (10 \%) \) Explain all the numbers in the flags that appeared in the diagram. d. \( (20 \%) \) Mark all the recycling lines. Explain the process reason for each recycle line.
