(Solved): Pre-Lab: Figure 1 i. Perform Pspice simulations and theoretical analysis for the circuit shown in F ...

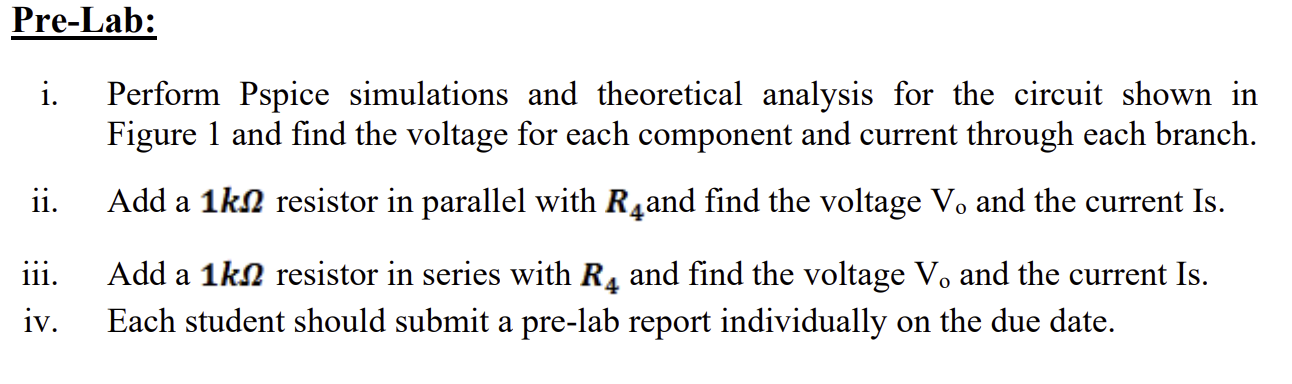

Pre-Lab: Figure 1 i. Perform Pspice simulations and theoretical analysis for the circuit shown in Figure 1 and find the voltage for each component and current through each branch. ii. Add a

resistor in parallel with

and find the voltage

and the current Is. iii. Add a

resistor in series with

and find the voltage

and the current Is. What PSpice component belongs where Vo is?? I cannot simulate the circuit with open ended wires
