(Solved): Prob 1. The clamp shown below is used to clamp (hold together) two pieces of wood. The top of the ...

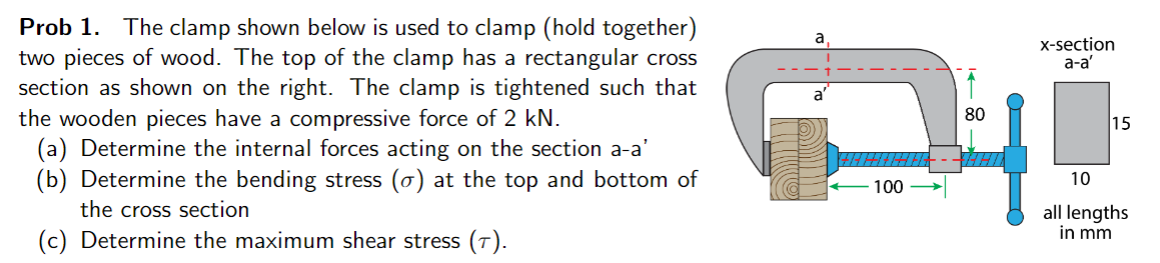

Prob 1. The clamp shown below is used to clamp (hold together) two pieces of wood. The top of the clamp has a rectangular cross section as shown on the right. The clamp is tightened such that the wooden pieces have a compressive force of 2 kN. (a) Determine the internal forces acting on the section a-a' (b) Determine the bending stress (o) at the top and bottom of the cross section (c) Determine the maximum shear stress (7). 100- 80 x-section a-a' 15 10 all lengths in mm
