(Solved): Problem 03.010 - Use singularity functions to find the reactions and plot the shear-force and bend ...

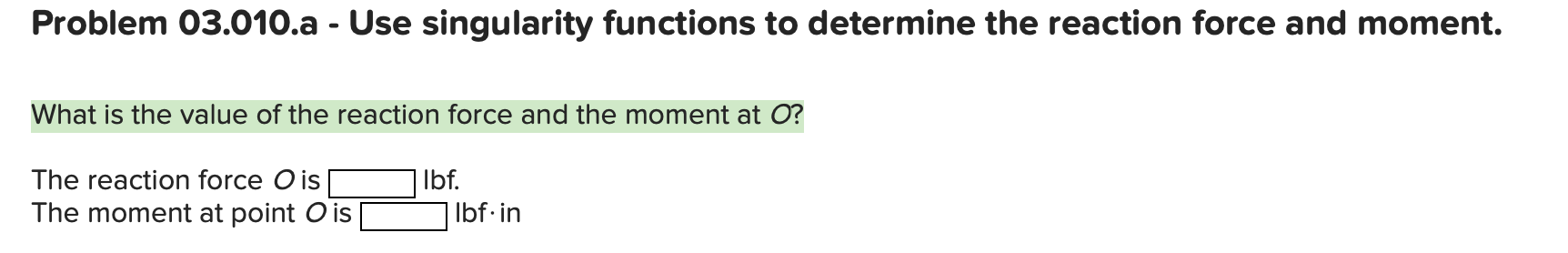

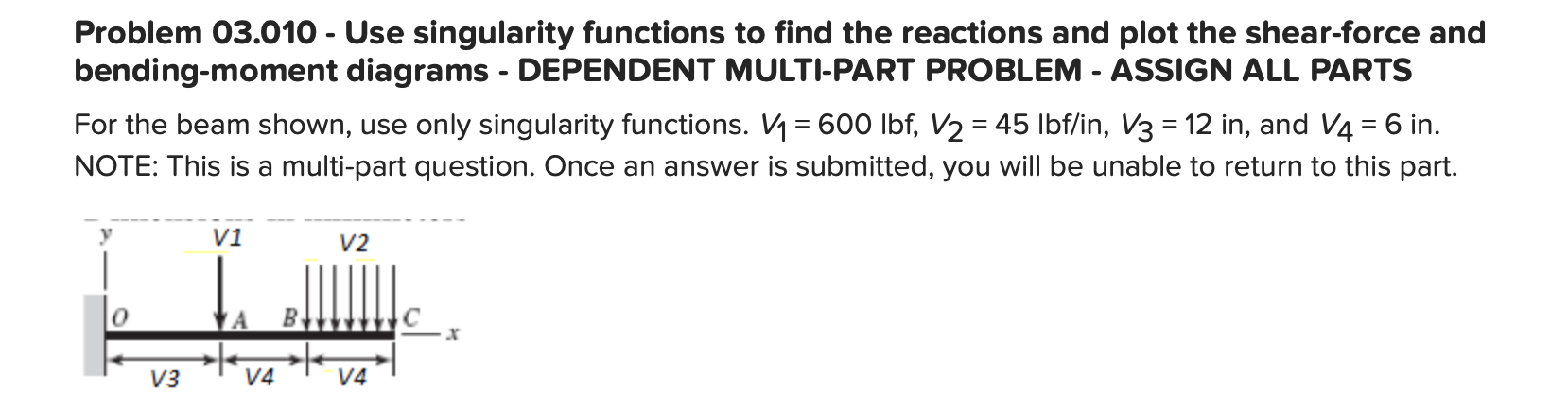

Problem 03.010 - Use singularity functions to find the reactions and plot the shear-force and bending-moment diagrams - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS For the beam shown, use only singularity functions. V? = 600 lbf, V? = 45 lbf/in, V3 = 12 in, and V4 = 6 in. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. 0 V3 V1 A ?? V4 V2 V4 X Problem 03.010.a - Use singularity functions to determine the reaction force and moment. What is the value of the reaction force and the moment at O? The reaction force O is The moment at point O is |lbf. lbf.in
