(Solved): Problem 08.096 - Amount of ice added and entropy in insulated piston-cylinder device An insulated pi ...

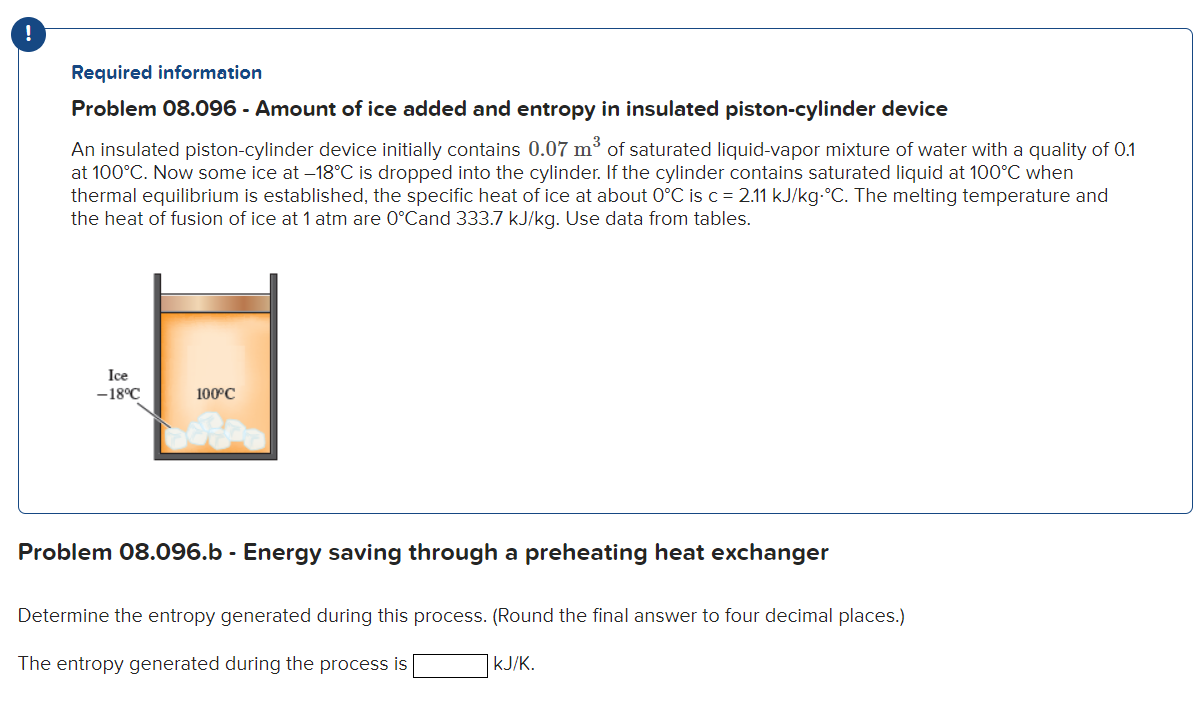

Problem 08.096 - Amount of ice added and entropy in insulated piston-cylinder device An insulated piston-cylinder device initially contains
0.07m^(3)of saturated liquid-vapor mixture of water with a quality of 0.1 at
100\deg C. Now some ice at
-18\deg Cis dropped into the cylinder. If the cylinder contains saturated liquid at
100\deg Cwhen thermal equilibrium is established, the specific heat of ice at about
0\deg Cis
c=2.11k(J)/(k)g*\deg C. The melting temperature and the heat of fusion of ice at
1atmare
0\deg Cand333.7k(J)/(k)g. Use data from tables. Problem 08.096.b - Energy saving through a preheating heat exchanger Determine the entropy generated during this process. (Round the final answer to four decimal places.) The entropy generated during the process is
k(J)/(K).
