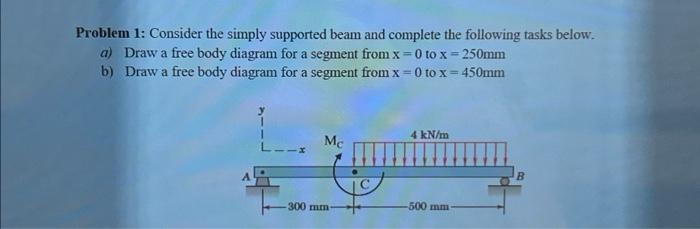

Problem 1: Consider the simply supported beam and complete the following tasks below. a) Draw a free body diagram for a segment from $x = 0$ to $x = 250 mm$ b) Draw a free body diagram for a segment from $x = 0$ to $x = 450 mm$

Question

Problem 1: Consider the simply supported beam and complete the following tasks below. a) Draw a free body diagram for a segment from

x = 0

to

x = 250 mm

b) Draw a free body diagram for a segment from

x = 0

to

x = 450 mm
