(Solved): Problem 1 Design CT system from Bode plot. The graph on the right shows the desired frequency resp ...

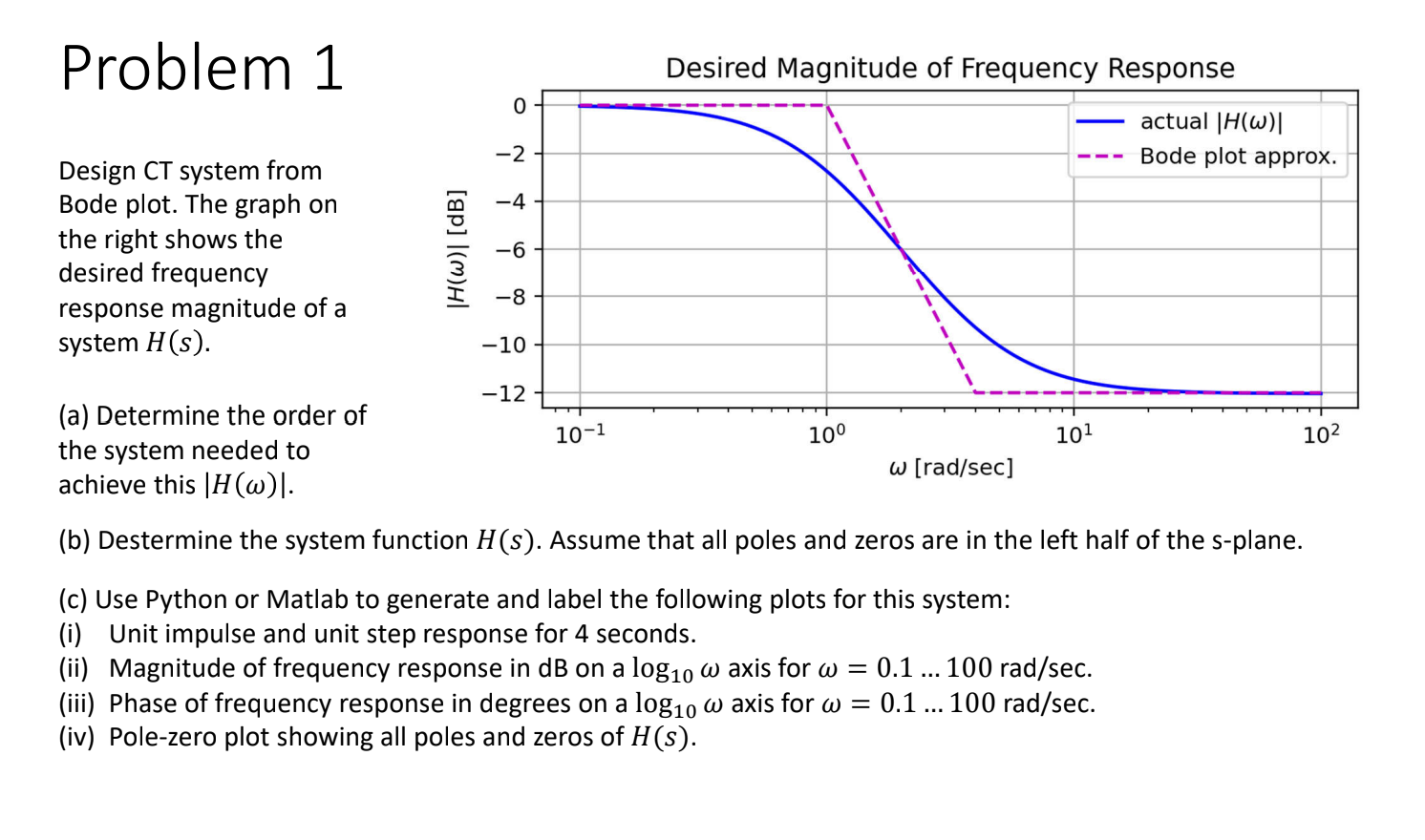

Problem 1
Design CT system from
Bode plot. The graph on
the right shows the
desired frequency
response magnitude of a
system

Problem 1 Design CT system from Bode plot. The graph on the right shows the desired frequency response magnitude of a system \( H(s) \). (a) Determine the order of the system needed to achieve this \( |H(\omega)| \). (b) Destermine the system function \( H(s) \). Assume that all poles and zeros are in the left half of the s-plane. (c) Use Python or Matlab to generate and label the following plots for this system: (i) Unit impulse and unit step response for 4 seconds. (ii) Magnitude of frequency response in \( \mathrm{dB} \) on a \( \log _{10} \omega \) axis for \( \omega=0.1 \ldots 100 \mathrm{rad} / \mathrm{sec} \). (iii) Phase of frequency response in degrees on a \( \log _{10} \omega \) axis for \( \omega=0.1 \ldots 100 \mathrm{rad} / \mathrm{sec} \). (iv) Pole-zero plot showing all poles and zeros of \( H(s) \).


We have an Answer from Expert

View Expert Answer

Expert Answer


Consider the figure below. From the above approximate bode plot, we can note that the pole is located at 1 rad/s and zero is located at 4 rad/s. Also, the dc gain is 0dB or 1. Hence, the transfer function of the system is: Check the DC gain (i.e subs
