(Solved): Problem (2) Design the tension reinforcement for the following doubly reinforced beam.Compressive st ...

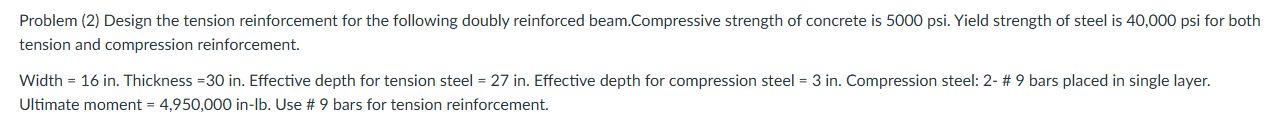

Problem (2) Design the tension reinforcement for the following doubly reinforced beam.Compressive strength of concrete is 5000 psi . Yield strength of steel is \( 40,000 \mathrm{psi} \) for both tension and compression reinforcement. Width = 16 in. Thickness = 30 in. Effective depth for tension steel = 27 in. Effective depth for compression steel = 3 in. Compression steel: 2 - \# 9 bars placed in single layer. Ultimate moment = 4,950,000 in-lb. Use \# 9 bars for tension reinforcement.
