(Solved): Problem 2 Given an open-loop transfer function: G(s)=(5)/((s+2)(s+3)) It is desired to design a lead ...

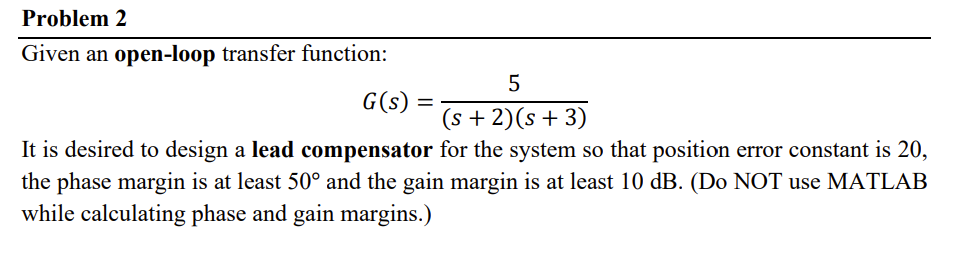

Problem 2
Given an open-loop transfer function:
G(s)=(5)/((s+2)(s+3))
It is desired to design a lead compensator for the system so that position error constant is 20 ,
the phase margin is at least 50\deg and the gain margin is at least 10 dB . (Do NOT use MATLAB
while calculating phase and gain margins.)
