(Solved): Problem 2 Refer to the figure below depicting a hardware architecture design using a generic micro ...

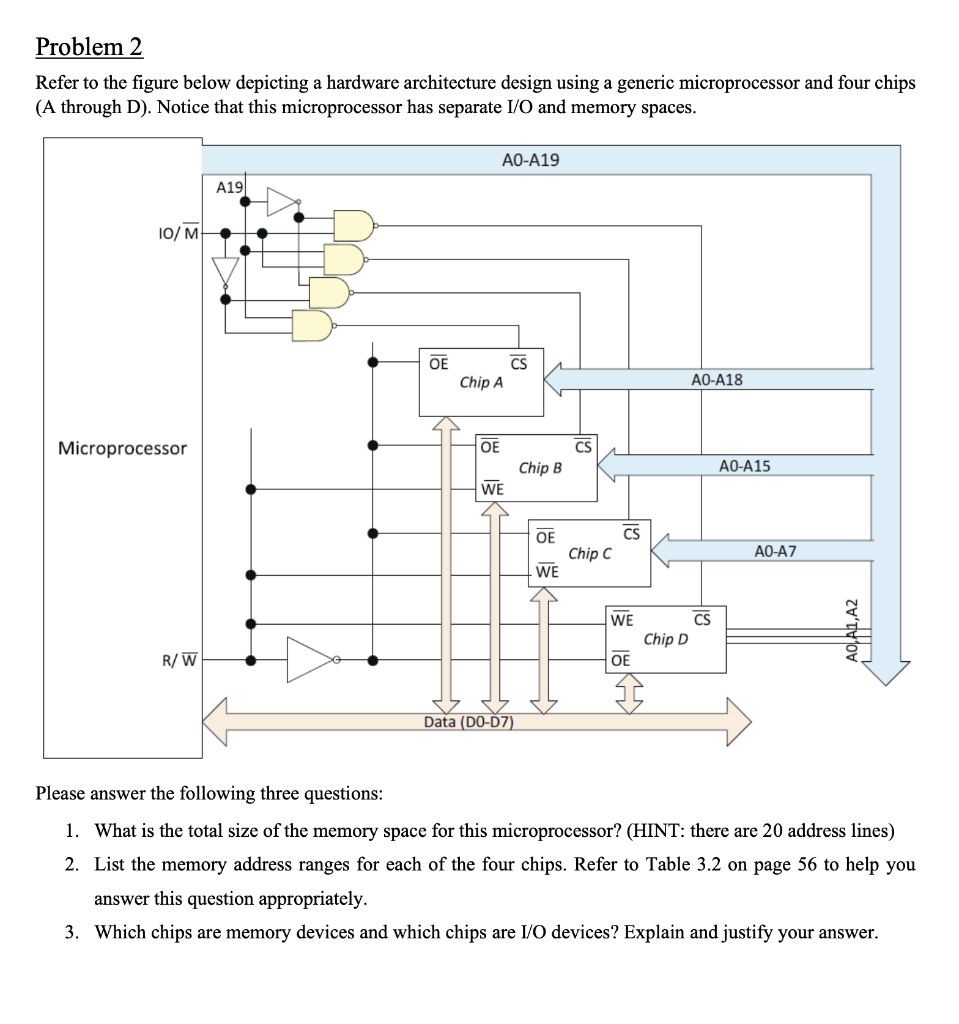

Problem 2 Refer to the figure below depicting a hardware architecture design using a generic microprocessor and four chips (A through D). Notice that this microprocessor has separate I/O and memory spaces. Please answer the following three questions: 1. What is the total size of the memory space for this microprocessor? (HINT: there are 20 address lines) 2. List the memory address ranges for each of the four chips. Refer to Table \( 3.2 \) on page 56 to help you answer this question appropriately. 3. Which chips are memory devices and which chips are I/O devices? Explain and justify your answer.
