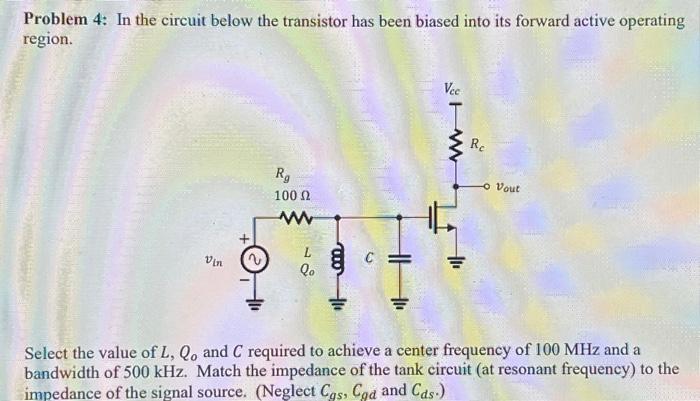

Problem 4: In the circuit below the transistor has been biased into its forward active operating region. Select the value of $L, Q_{0}$ and $C$ required to achieve a center frequency of $100 MHz$ and a bandwidth of $500 kHz$ . Match the impedance of the tank circuit (at resonant frequency) to the impedance of the signal source. (Neglect $C_{g s}, C_{g d}$ and $C_{d s}$ .)

Question

Problem 4: In the circuit below the transistor has been biased into its forward active operating region. Select the value of

L, Q_{0}

and

C

required to achieve a center frequency of

100 MHz

and a bandwidth of

500 kHz

. Match the impedance of the tank circuit (at resonant frequency) to the impedance of the signal source. (Neglect

C_{g s}, C_{g d}

and

C_{d s}

.)
