(Solved): Problem \#7 (KVL) Find I in the circuit below. Find for the voltage VDS in the circuit below. Fi ...

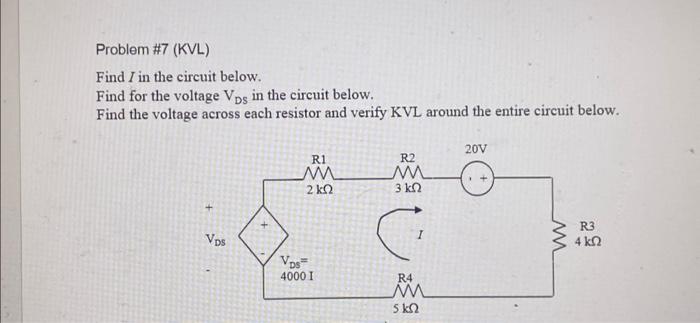

student submitted image, transcription available below
Problem \#7 (KVL) Find in the circuit below. Find for the voltage in the circuit below. Find the voltage across each resistor and verify KVL around the entire circuit below.
