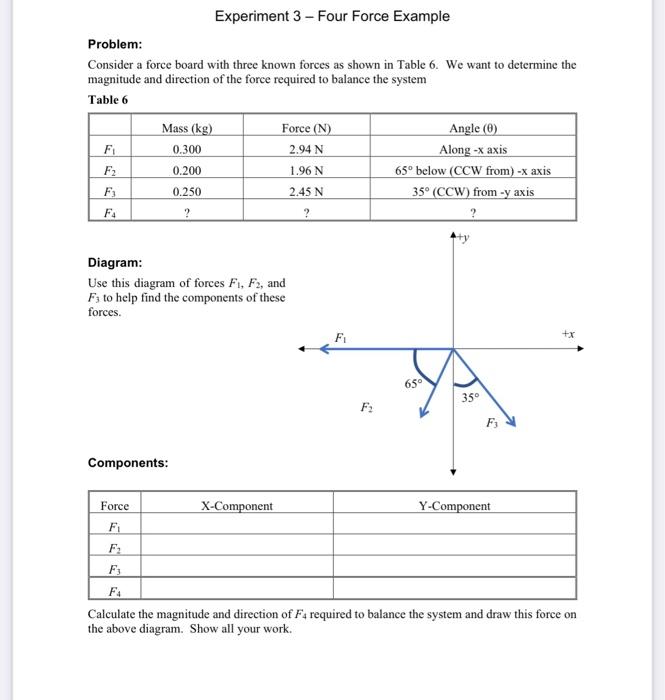

Problem: Consider a force board with three known forces as shown in Table 6. We want to determine the magnitude and direction of the force required to balance the system Table 6 Diagram: Use this diagram of forces $F_{1}, F_{2}$ , an $F_{3}$ to help find the components of thes, forces. Components: Calculate the magnitude and direction of $F_{4}$ required to balance the system and draw this force on the above diagram. Show all your work.

Question

student submitted image, transcription available below

Problem: Consider a force board with three known forces as shown in Table 6. We want to determine the magnitude and direction of the force required to balance the system Table 6 Diagram: Use this diagram of forces

F_{1}, F_{2}

, an

F_{3}

to help find the components of thes, forces. Components: Calculate the magnitude and direction of

F_{4}

required to balance the system and draw this force on the above diagram. Show all your work.
