(Solved): Problem1: Consider the following 3-bit ADC. Draw the conversion transfer function (binary output vs ...

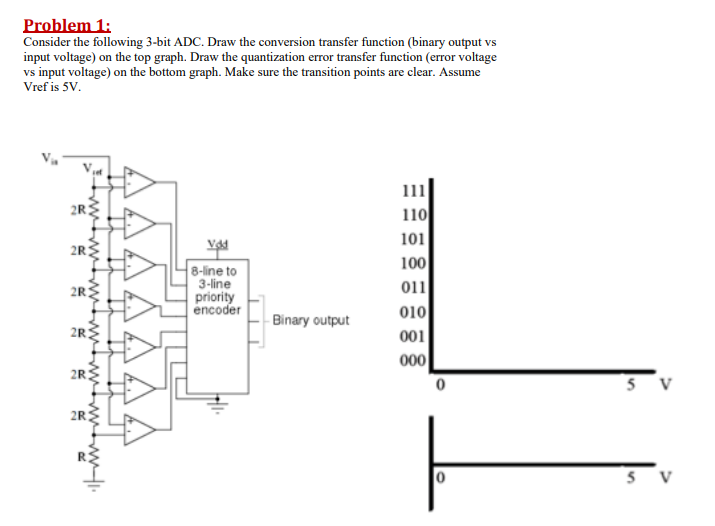

Problem1: Consider the following 3-bit ADC. Draw the conversion transfer function (binary output vs input voltage) on the top graph. Draw the quantization error transfer function (error voltage vs input voltage) on the bottom graph. Make sure the transition points are clear. Assume Vref is 5 V .
