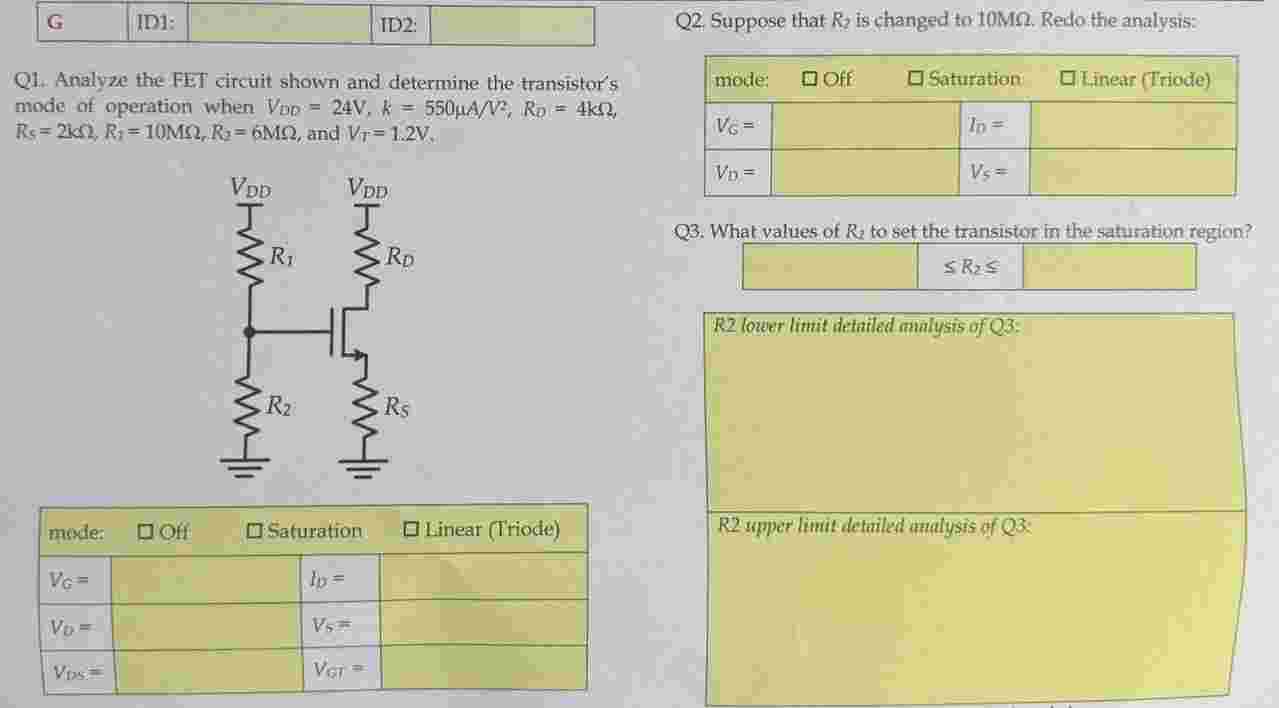

Q1. Analyze the FET circuit shown and determine the transistor's
mode of operation when V_(DD)=24V,k=550\mu (A)/(V^(2)),R_(D)=4k\Omega ,
R_(s)=2k\Omega ,R_(1)=10M\Omega _(r)R_(2)=6M\Omega , and V_(T)=1.2V,
Q2. Suppose that R. is changed to 10M\Omega . Redo the analysis:
Q3. What values of R_(2) to set the transistor in the saturation region?
<=R_(2)<=
R2 lower limit detaillad malysis of Q3:
R2 upper limit detailed analysis of Q3:
