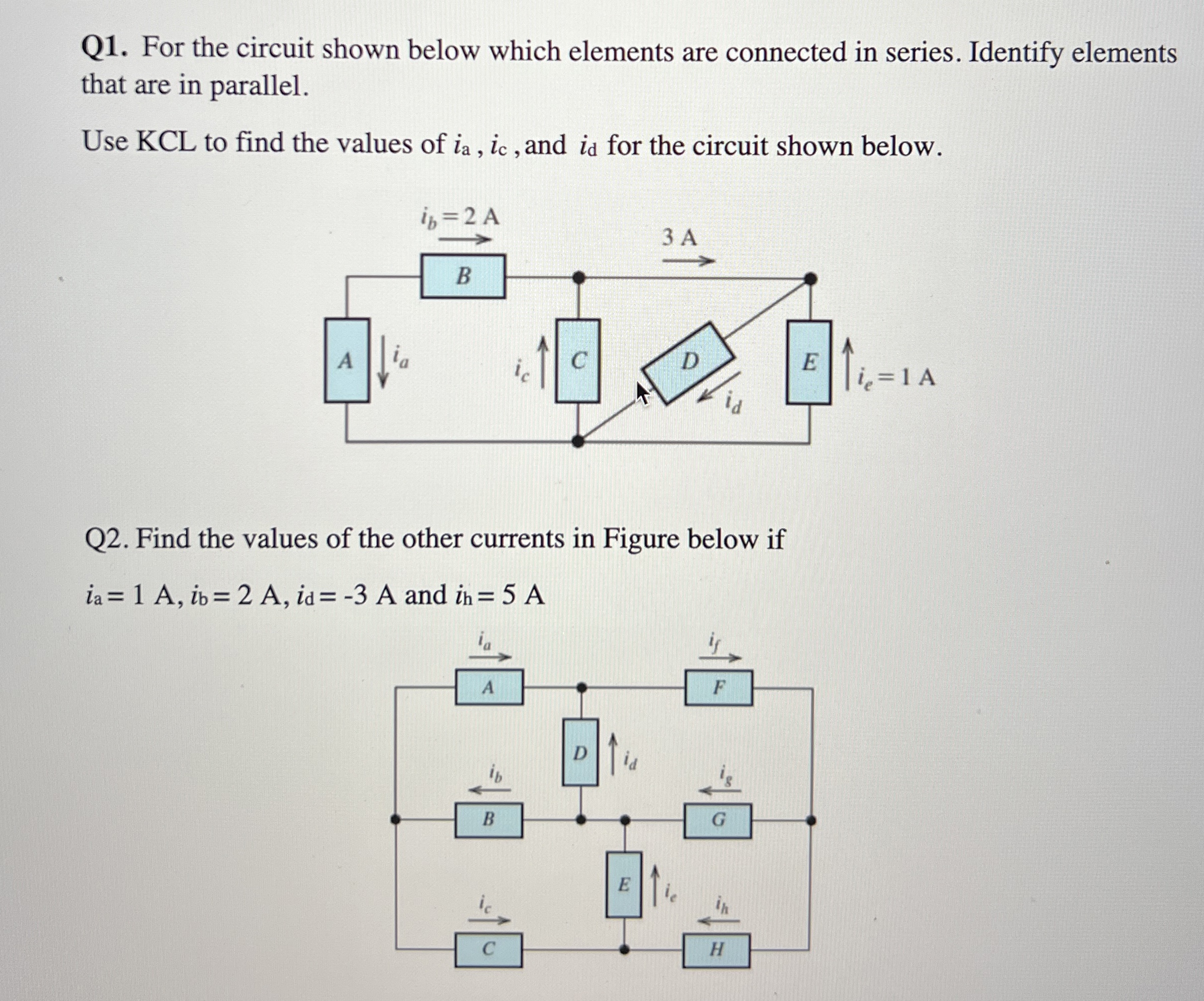

Q1. For the circuit shown below which elements are connected in series. Identify elements that are in parallel. Use KCL to find the values of
i_(a),i_(c)
, and
i_(d)
for the circuit shown below. Q2. Find the values of the other currents in Figure below if
i_(a)=1A,i_(b)=2A,i_(d)=-3A
and
i_(h)=5A

Question

Q1. For the circuit shown below which elements are connected in series. Identify elements that are in parallel. Use KCL to find the values of

i_(a),i_(c)

, and

i_(d)

for the circuit shown below. Q2. Find the values of the other currents in Figure below if

i_(a)=1A,i_(b)=2A,i_(d)=-3A

and

i_(h)=5A
