(Solved): Q10. Fig. 10 shows an off-set piston mechanism in which the crank OA rotates clockwise at 2500rpm. D ...

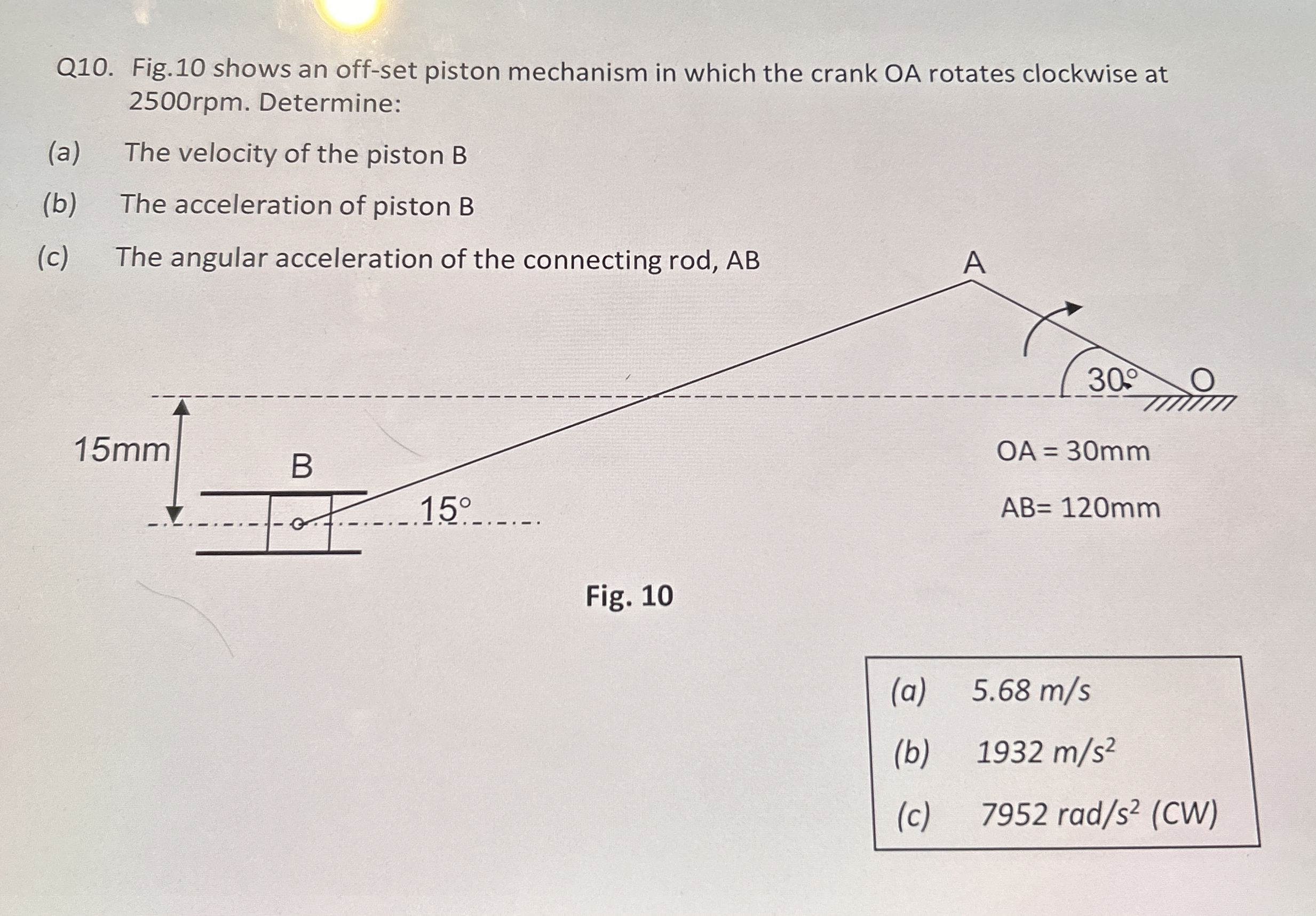

Q10. Fig. 10 shows an off-set piston mechanism in which the crank OA rotates clockwise at 2500rpm. Determine: (a) The velocity of the piston

B

(b) The acceleration of piston

B

(c) The angular acceleration of the connecting rod, AB Fig. 10 (a)

5.68(m)/(s)

(b)

1932(m)/(s^(2))

(c)

7952ra(d)/(s^(2))(CW)
