(Solved): Q1V_(0)=10V,R_(s)=10k\Omega ,R_(L)=100\Omega , and the NPN transistor is operating in the forward ac ...

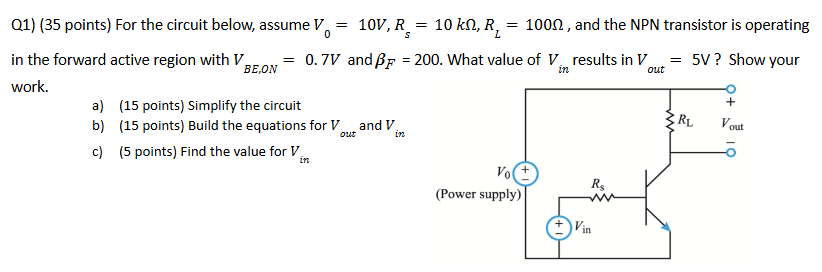

Q1V_(0)=10V,R_(s)=10k\Omega ,R_(L)=100\Omega , and the NPN transistor is operating
in the forward active region with V_(BE,ON)=0.7V and \beta _(F)=200. What value of V_(in ) results in V_(out )=5V ? Show your
work.
aV_(out ) and V_(in )
cV_(in )
