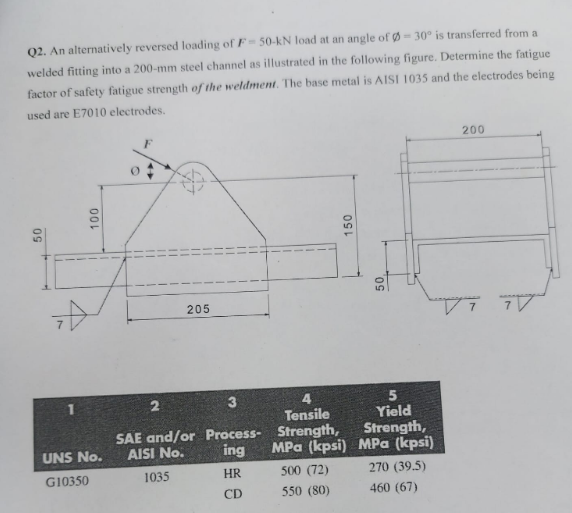

Q2. An alternatively reversed loading of F=50-kN load at an angle of O/=30° is transferred from a welded fitting into a 200-mm steel channel as illustrated in the following figure. Determine the fatigue factor of safety fatigue strength of the weldment. The base metal is AISI 1035 and the electrodes being used are E7010 electrodes.
