(Solved): Q2) Calculate the force and moment reactions at the bolted base O of the overhead traffic- signal ...

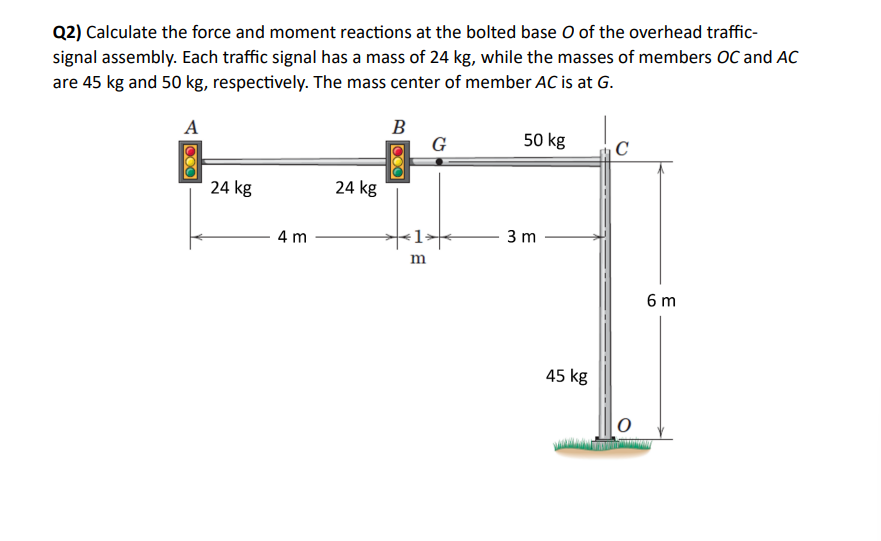

Q2) Calculate the force and moment reactions at the bolted base

of the overhead traffic- signal assembly. Each traffic signal has a mass of 24 kg , while the masses of members

and

are 45 kg and 50 kg , respectively. The mass center of member

is at

.
