(Solved): Question 2 [25 marks] Part A [5 marks] Obtain the expreswion for the output \( F \) in terms of the ...

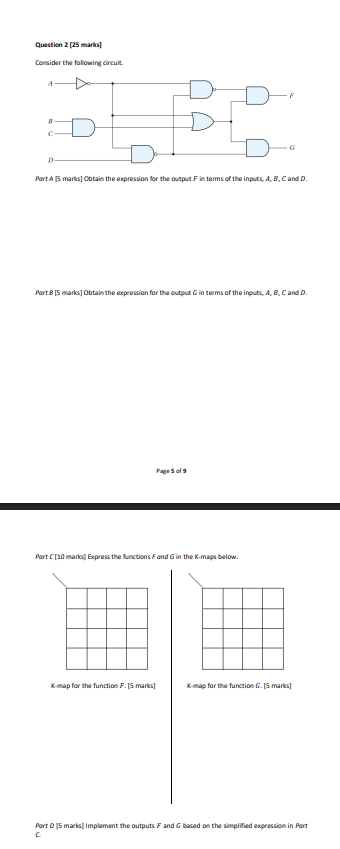

Question 2 [25 marks] Part A [5 marks] Obtain the expreswion for the output \( F \) in terms of the inputi, \( A, B, C \) and \( D \). Part \( B \) [5 marks] Obtain the expression for the output \( G \) in terms of the inputs, \( A, B, C \) and \( D \). Part \( C[10 \) marks] Express the fanctions \( F \) and \( G \) in the \( K \)-maps bulow. K-map for the function \( E \). [S marks] K-map for the function G. [5 marks]
