(Solved): Question 2-Beam/Frame Structure For the steel beam shown below, find the support reactions and draw ...

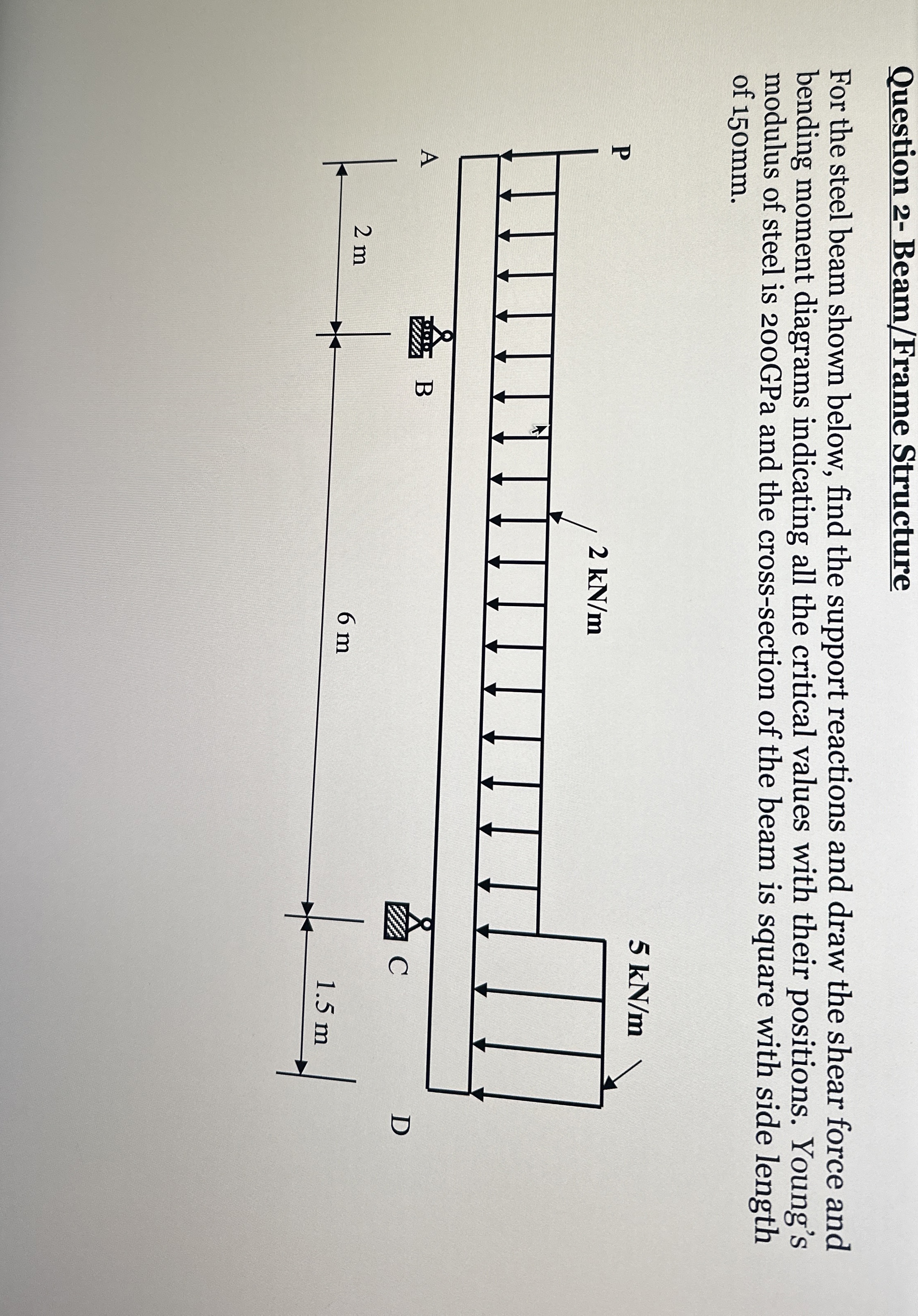

Question 2-Beam/Frame Structure For the steel beam shown below, find the support reactions and draw the shear force and bending moment diagrams indicating all the critical values with their positions. Young's modulus of steel is 200 GPa and the cross-section of the beam is square with side length of 150 mm .P =12kN
