(Solved): QUESTION 6 The feature control Frame in the red box below matches which type of control? A MEDIAN P ...

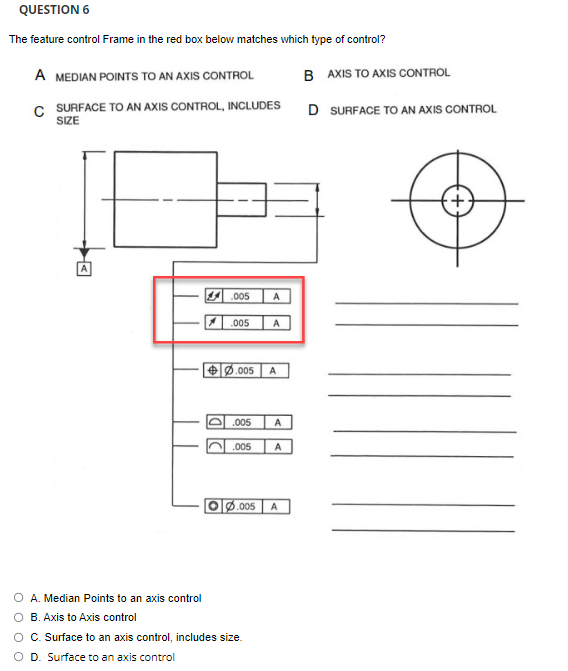

QUESTION 6 The feature control Frame in the red box below matches which type of control? A MEDIAN POINTS TO AN AXIS CONTROL C SURFACE TO AN AXIS CONTROL, INCLUDES SIZE B AXIS TO AXIS CONTROL D SURFACE TO AN AXIS CONTROL A. Median Points to an axis control B. Axis to Axis control C. Surface to an axis control, includes size. D. Surface to an axis control
Expert Answer
runout is explained below :When the part is rotated 360 degrees around the datum axis, runout is the amount by which a certain reference feature or features differ from another datum. It effectively regulates how much a circular feature varies in relation to the rotational axis. Any feature that is rotated about an axis can be called out for runout.
