(Solved): RC Circuits In the given circuit the switch has remained open for an extended period of time. The ...

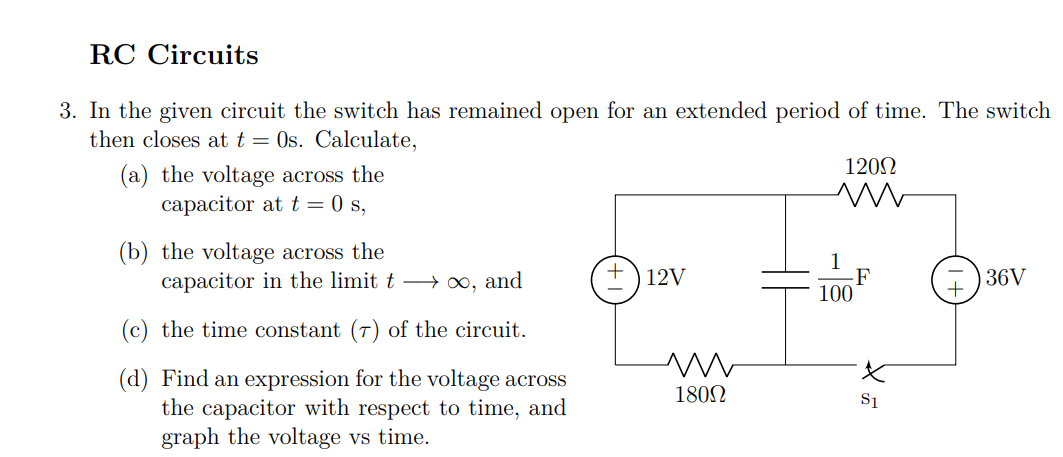

RC Circuits In the given circuit the switch has remained open for an extended period of time. The switch then closes at
t=0s. Calculate, (a) the voltage across the capacitor at
t=0s, (b) the voltage across the capacitor in the limit
tlongrightarrow\infty , and (c) the time constant
(\tau )of the circuit. (d) Find an expression for the voltage across the capacitor with respect to time, and graph the voltage vs time.
