(Solved): Refer to Figure 1 to answer questions a) until e). Requirements specification Architectural design ...

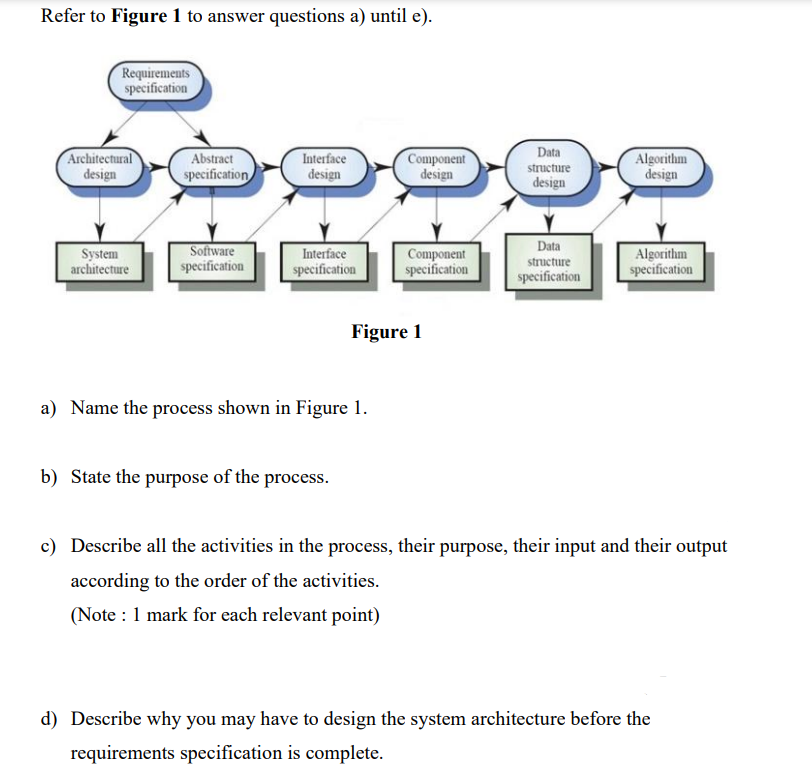

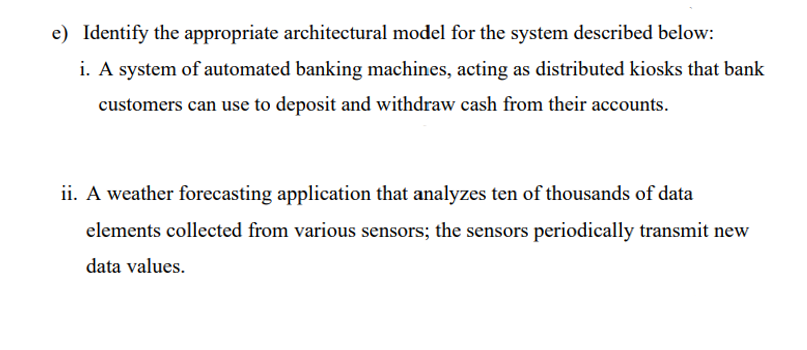

Refer to Figure 1 to answer questions a) until e). Requirements specification Architectural design System architecture Abstract specification Software specification Interface design Interface specification a) Name the process shown in Figure 1. b) State the purpose of the process. Component design Component specification Figure 1 Data structure design Data structure specification Algorithm design Algorithm specification c) Describe all the activities in the process, their purpose, their input and their output according to the order of the activities. (Note: 1 mark for each relevant point) d) Describe why you may have to design the system architecture before the requirements specification is complete. e) Identify the appropriate architectural model for the system described below: i. A system of automated banking machines, acting as distributed kiosks that bank customers can use to deposit and withdraw cash from their accounts. ii. A weather forecasting application that analyzes ten of thousands of data elements collected from various sensors; the sensors periodically transmit new data values.
