(Solved): Results of a standard Proctor compaction test on silty sand are shown in Figure 2: Figure 2 Proctor ...

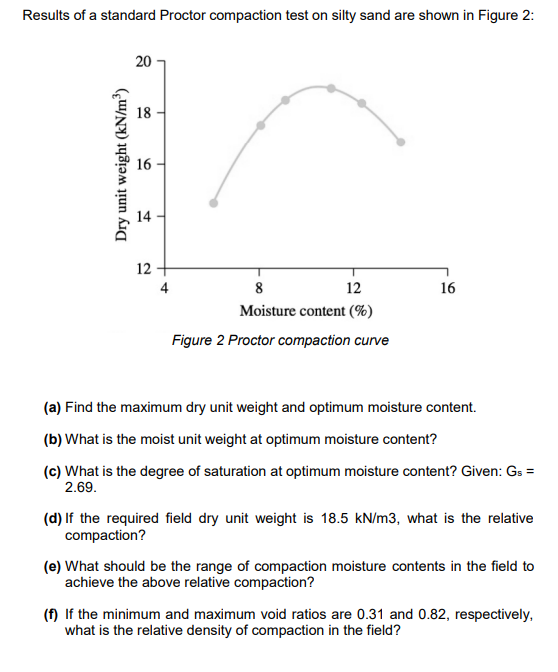

Results of a standard Proctor compaction test on silty sand are shown in Figure 2: Figure 2 Proctor compaction curve (a) Find the maximum dry unit weight and optimum moisture content. (b) What is the moist unit weight at optimum moisture content? (c) What is the degree of saturation at optimum moisture content? Given: ${\mathrm{G}}_{\mathrm{s}}=$ 2.69. (d) If the required field dry unit weight is $18.5\mathrm{kN}/\mathrm{m}3$, what is the relative compaction? (e) What should be the range of compaction moisture contents in the field to achieve the above relative compaction? (f) If the minimum and maximum void ratios are 0.31 and 0.82 , respectively, what is the relative density of compaction in the field?
