(Solved): Revision Example Design the shown beam, considering the shown bending moment and shear force diagr ...

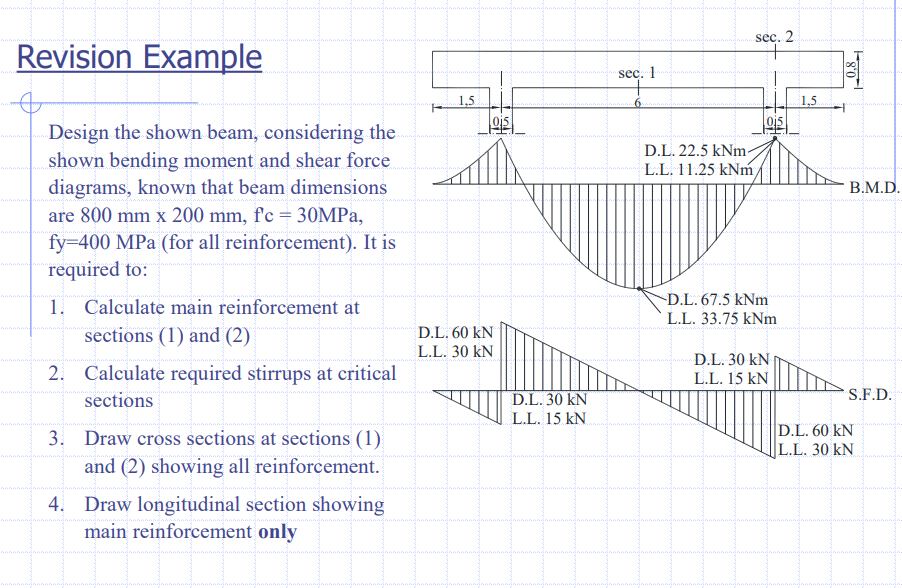

Revision Example Design the shown beam, considering the shown bending moment and shear force diagrams, known that beam dimensions are \( 800 \mathrm{~mm} \times 200 \mathrm{~mm}, \mathrm{f}^{\prime} \mathrm{c}=30 \mathrm{MPa} \), \( \mathrm{fy}=400 \mathrm{MPa} \) (for all reinforcement). It is required to: 1. Calculate main reinforcement at sections (1) and (2) 2. Calculate required stirrups at critical sections 3. Draw cross sections at sections (1) and (2) showing all reinforcement. 4. Draw longitudinal section showing main reinforcement only
