Secondary school computing. Logic gates. need helps.

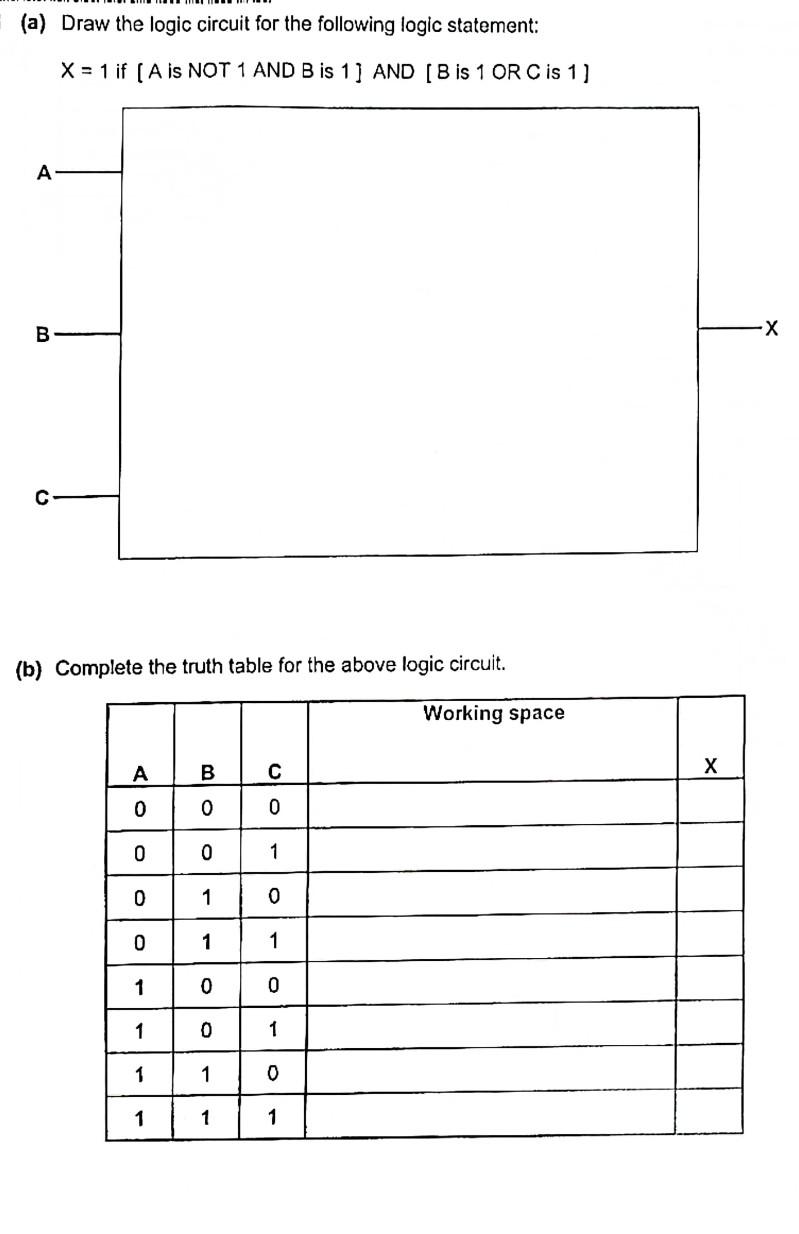

(a) Draw the logic circuit for the following logic statement: $X = 1$ if [ $A$ is NOT 1 AND $B$ is 1 ] AND [ $B$ is 1 OR $C$ is 1 ] (b) Complete the truth table for the above logic circuit.

Question

student submitted image, transcription available below

Secondary school computing. Logic gates. need helps.

(a) Draw the logic circuit for the following logic statement:

X = 1

if [

A

is NOT 1 AND

B

is 1 ] AND [

B

is 1 OR

C

is 1 ] (b) Complete the truth table for the above logic circuit.
