(Solved): sheer force diagram and moment diagram Consider the beam in (Figure 1).\r\n\r\n\r\nDraw the shear di ...
sheer force diagram and moment diagram

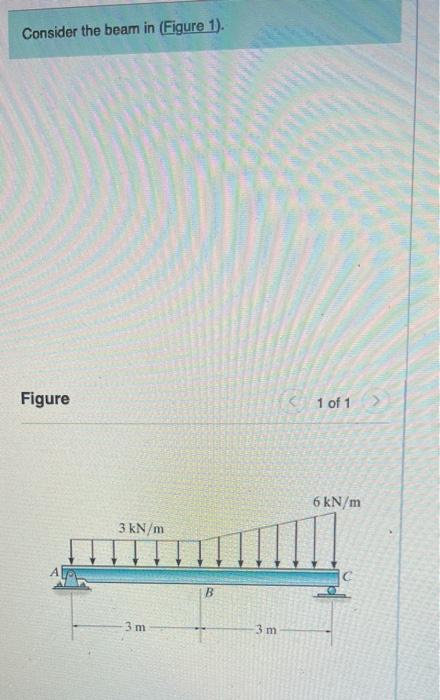

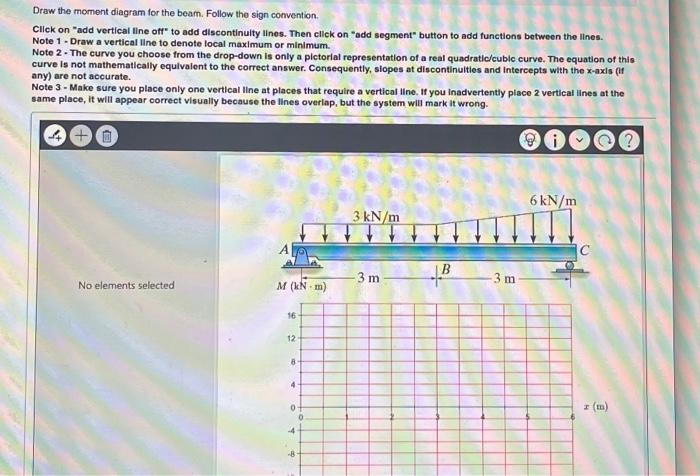

Consider the beam in (Figure 1).\r\n\r\n\r\nDraw the shear diagram for the beam. Follow the sign corvontion. Click on \"add vertical line off\" to add discontinuity lines. Then click on \"add segment\" button to add functions between the lines. Note 1 - You should not draw an \"extra\" discontinulty line at the point where the curve passes the \\( x \\)-axis. Note 2 - The curve you choose from the drop-down is only a pletorial representatlon of a real quadratic/cuble curve. The equation of this curve is not mathematically equivalent to the correct answer. Consoquently, slopes at discontinulties and intercepts with the \\( x \\)-axis (if any) are not accurate. Note 3-Be sure to Indicate the correct types of the functions between the lines, e.g. If in your answer the type of a function is \"Ilinear Increasing slope\" for the function that actually has linear decreasing slope, the answer will be graded as Incorrect. Use the button \"change segment\" If necessary. Note 4-Make sure you place only one vertical line at places that require a vertical line. If you Inadvertently place 2 vertical lines at the same place, It will appear correct visually because the lines overlap, but the systern will mark it wrong.\r\nDraw the moment diagram for the beam. Follow the sign comvention. Click on \"add vertical line off\" to add discontinuity lines. Then cllek on \"add segment\" button to add functions between the lines. Note 1 - Draw a vertical line to denote local maximum or minimum. Note 2. The curve you choose from the drop-down is only a plctorial representation of a real quadratic/cubic curve. The equation of this curve is not mathematically equivalent to the correct answer. Consequently, siopes at discontinuities and intercepts with the x-axis (if any) are not accurate. Note 3 - Make sure you place only one vertical Iline at places that require a vertical ilne, If you inadvertently piace 2 vertical ines at the same place, it will appear correct visually because the lines overlap, but the system will mark it wrong.
