Design an op-amp based Miller integrator that attenuates input frequencies above $100 kHz$ (Gain $< 1$ when $f_{in} > 100 kHz$ ) and exhibits a DC gain of $60 dB$ . Assume the largest available capacitor is $50 pF$ .

Question

Show details

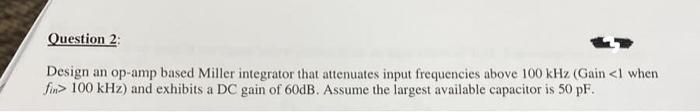

student submitted image, transcription available below

Design an op-amp based Miller integrator that attenuates input frequencies above

100 kHz

(Gain

< 1

when

f_{in} > 100 kHz

) and exhibits a DC gain of

60 dB

. Assume the largest available capacitor is

50 pF

.
